Shop DAYTON

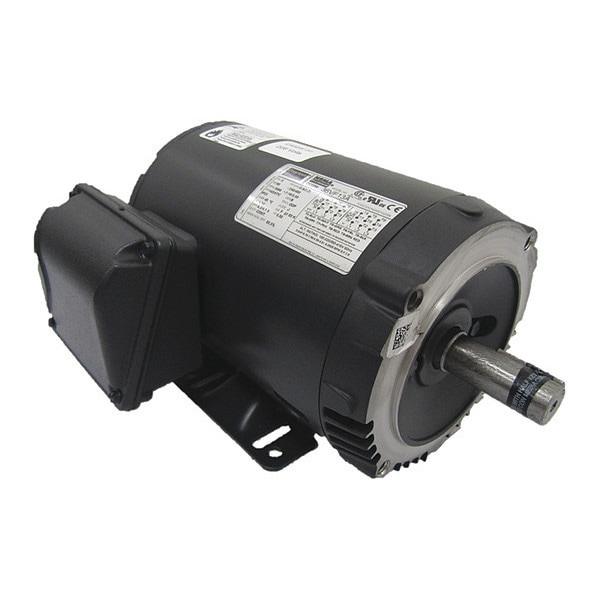

Three-Phase General Purpose Motor, 3 HP, 143/5TC Frame, 230/460V AC Voltage, 3,450 Nameplate RPM

  • Mfr # 36VF13
  • Zoro # G1811050
product price:
$
541.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
3,450
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
7.1/3.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
36VF13
Zoro #
G1811050
UPC #
190735275450
Country of Origin
Mexico
Item
General Purpose Motor
HP
3
Nameplate RPM
3,450
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
7.1/3.5 A
Frame
143/5TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Standards
CSA, UL
CC Number
CC029A
Footnotes
2, 15, 53
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Motor Thermal Protection
None
Includes
Shaft Key
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Capacitor Required
No
Duty Cycle
Continuous
NEMA Design Class
B
Bearing Protection Type
No Protection
Nameplate Service Factor @ 60 Hz
1.15
Inverter Rating
Inverter Rated
Manufacturers Warranty
1 yr
Variable Torque Rating
1000:1
Weight
18 29/32 kg
Bearing Type
Ball
Full Load Current @ 60 Hz
7.18/3.59 A
Efficiency Rating
NEMA Premium Efficiency
Motor Enclosure Type
Open Drip Proof
Frame Material
Steel
Frequency
60 Hz
Usable @ 200V
Not Usable at 200V
Bearing Lubrication Type
Permanently Lubricated
Product Type
General Purpose Motor
Usable @ 208V
Not Usable at 208V
Application
General Purpose
Shaft Design
Keyed
Insulation Class
F
Number of Speeds
1
Conduit Box Location
Exterior
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 3,450, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.1/3.5 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CSA, UL
