Shop DAYTON

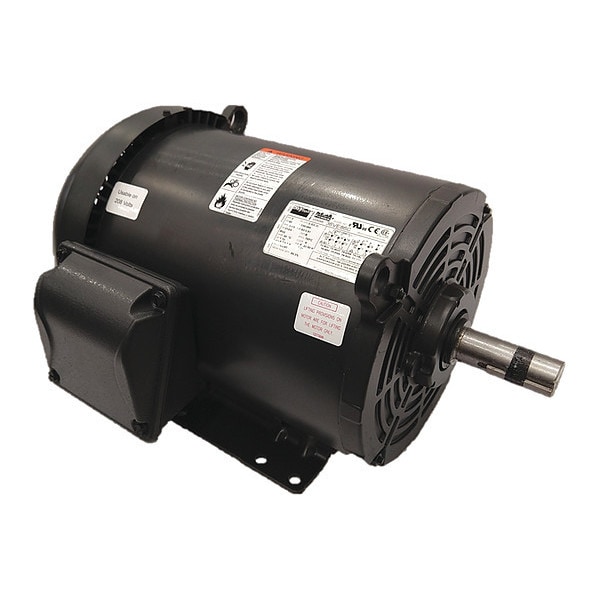

Three-Phase General Purpose Motor, 3 HP, 213/5 Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

  • Mfr # 36VE86

  • Zoro # G0692295

product price:
$
917.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
7.8/3.9 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36VE86
Zoro #
G0692295
UPC #
190735275207
Country of Origin
Mexico

Dimensions

Length Less Shaft
15 7/8 in
Overall Length
18 15/16 in
Shaft Dia.
1 1/8 in
Shaft Length
3 in
Manufacturers Warranty Length
1 yr
Body Diameter
9.78 in
Shaft Diameter
1 1/8 in
Frame Size
213-5
Wire Rope Length
18 15/16 in
Length
18 15/16 in

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
7.8/3.9 A
Frame
213/5
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CE, CSA, UL
CC Number
CC029A
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Footnotes
2,15,53
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Motor Thermal Protection
None
Includes
Shaft Key
Duty Cycle
Continuous
Capacitor Required
No
Weight
52 3/16 kg
Mounting Position
Horizontal
Shaft Design
Keyed
Variable Torque Rating
10:1
Efficiency Rating
NEMA Premium Efficiency
Ambient Temperature - Maximum
40 Degrees C
Product Type
General Purpose Motor
NEMA Design Class
B
Usable @ 200V
Not Usable at 200V
Bearing Lubrication Type
Permanently Lubricated
Number of Speeds
1
Bearing Protection Type
Shaft Slingers
Nameplate Service Factor @ 60 Hz
1.15
Manufacturers Warranty
1 yr
Motor Enclosure Type
Totally Enclosed Fan Cooled
Inverter Rating
Inverter Rated
Frequency
60 Hz
Conduit Box Location
Exterior
Insulation Class
F
Bearing Type
Ball
Constant Torque Rating
4:1
Frame Material
Steel
Application
General Purpose
Full Load Current @ 60 Hz
7.71/3.86 A
Usable @ 208V
Not Usable at 208V

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1,770, Frame 213/5, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.8/3.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
