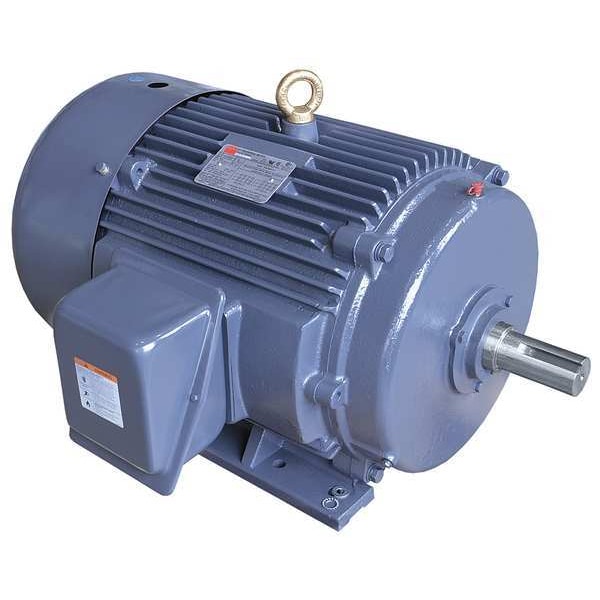

Three-Phase General Purpose Motor, 40 HP, 324TS Frame, 230/460V AC Voltage, 3560 Nameplate RPM
Mfr # 194167.00
Zoro # G2664085
product price:Â $6,412.99
/ea
Additional $160.00 delivery surcharge applies per item.
Key Features
HP
40
Nameplate RPM
3560
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
91.0/45.5 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
194167.00
Zoro #
G2664085
UPC #
190735227787
Country of Origin
Multiple
Dimensions
Length Less Shaft
27 1/2 in
Overall Length
28 7/16 in
Shaft Dia.
1 7/8 in
Shaft Length
3 3/4 in
Manufacturers Warranty Length
3 yr
Frame Size
324TS
Shaft Diameter
1 7/8 in
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 40 HP, Nameplate RPM 3560, Frame 324TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 91.0/45.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.4 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
