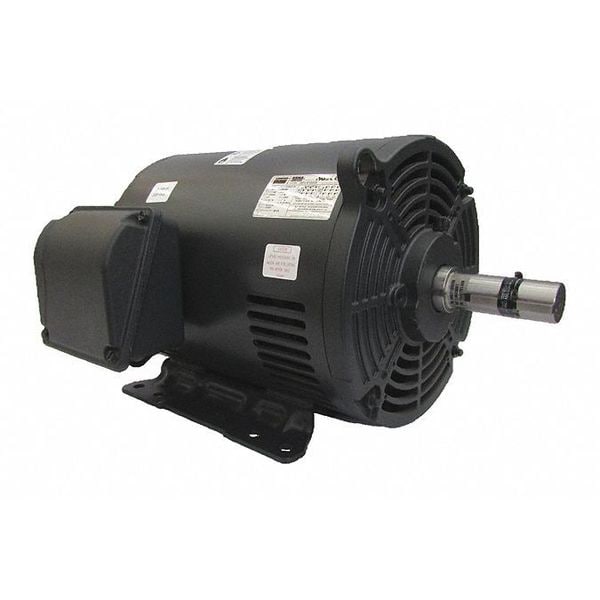

Three-Phase General Purpose Motor, 5 HP, 254/6U Frame, 230/460V AC Voltage, 1180 Nameplate RPM

  • Mfr # 36VE96

  • Zoro # G1860665

product price:  $1,369.99
/ea
Additional $115.00 delivery surcharge applies per item.
See details

Key Features

HP
5
Nameplate RPM
1180
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
14.6/7.3 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36VE96
Zoro #
G1860665
UPC #
190735275306
Country of Origin
Mexico

Dimensions

Length Less Shaft
16 1/2 in
Overall Length
20 1/4 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/4 in
Manufacturers Warranty Length
1 yr
Body Diameter
11.52 in
Frame Size
254-6U
Shaft Diameter
1 3/8 in

Details

Item
General Purpose Motor
HP
5
Nameplate RPM
1180
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
14.6/7.3 A
Frame
254/6U
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CE, CSA, UL
CC Number
CC029A
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition
NEMA Premium(R) Rated
Inverter Rated
Yes
Motor Thermal Protection
None
Footnotes
2,15,53
Includes
Shaft Key
Duty Cycle
Continuous
Capacitor Required
No
Bearing Protection Type
No Protection
Insulation Class
F
Bearing Lubrication Type
Regreasable
Variable Torque Rating
10:1
Usable @ 200V
Not Usable at 200V
Shaft Design
Keyed
Conduit Box Location
Exterior
Manufacturers Warranty
1 yr
Full Load Current @ 60 Hz
14.0/7.0 A
Frequency
60 Hz
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof
Inverter Rating
Inverter Rated
Weight
76 13/32 kg
Mounting Position
Horizontal
NEMA Design Class
B
Usable @ 208V
Not Usable at 208V
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1.15
Frame Material
Steel
Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Product Type
General Purpose Motor
Efficiency Rating
NEMA Premium Efficiency

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 5 HP, Nameplate RPM 1180, Frame 254/6U, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 14.6/7.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL, Includes Shaft Key
