Shop DAYTON

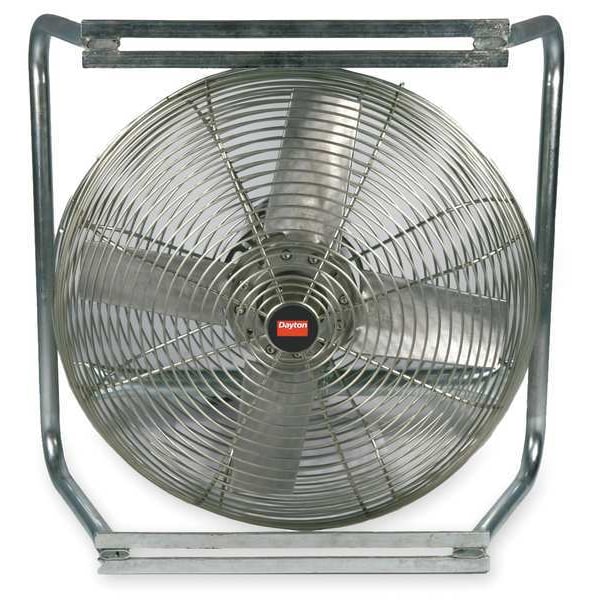

Transformer Fan, 115/230V, 20 in., 6599 cfm

  • Mfr # 2ATX9

  • Zoro # G3032005

product price:  $972.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
20 in
Motor HP
1/2 hp
RPM
1,725 RPM
Voltage
115/230V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2ATX9
Zoro #
G3032005
UPC #
190735216729
Country of Origin
Mexico

Dimensions

Blade Diameter
20 in
Power Cord Length
15 ft.
Height
24 in
Blade Dia.
20"
Width
26 in
Max. Depth
15-3/4"
Fan Cord Length
15 ft
Depth
15 3/4 in

Details

Item
Transformer Cooling Fan
Motor HP
1/2 hp
RPM
1,725 RPM
Voltage
115/230V AC
Phase
Single
Fan Voltage
115/230VAC
Max. Ambient Temp.
104 Degrees F
Standards
UL Recognized
Number of Blades
4
Air Flow (CFM)
6599
Fan Mounting Type
Tubular Mount
Motor RPM
1725
HP
1/2
Hz.
60
Fan Phase
1
Amps AC
4.1/2.1 A
Includes
Weatherproof Power Cord
Motor Type
Permanent Split Capacitor
Motor Insulation
B
Bearing Type
Ball
Motor Enclosure
Totally Enclosed Air-Over
Blade Material
Aluminum
Frame
48Y
Mount Type
Tubular Mount
Guards
Steel
Fan Item
Transformer Cooling Fan
Hz
60 Hz
Air Flow
6,599 cfm
Amps
4.1/2.1 A
Environmental Applications
Equipment Cooling
Guard Material
Steel

Description

Transformer Cooling Fan, Blade Diameter 20 in, Air Flow 6,599 cfm, Voltage 115/230V AC, 60 Hz Hz, Phase Single, Fan Mounting Type Tubular Mount, 4.1/2.1 A Amps, 1,725 RPM RPM, Motor HP 1/2 hp, Max. Ambient Temp. 104 Degrees F, Bearing Type Ball, Number of Blades 4, Blade Material Aluminum, Fan Cord Length 15 ft, Guard Material Steel, 24 in Height, Width 26 in, 15 3/4 in Depth, Motor Enclosure Totally Enclosed Air-Over, Motor Insulation B, Frame 48Y, Includes Weatherproof Power Cord
