Shop DAYTON

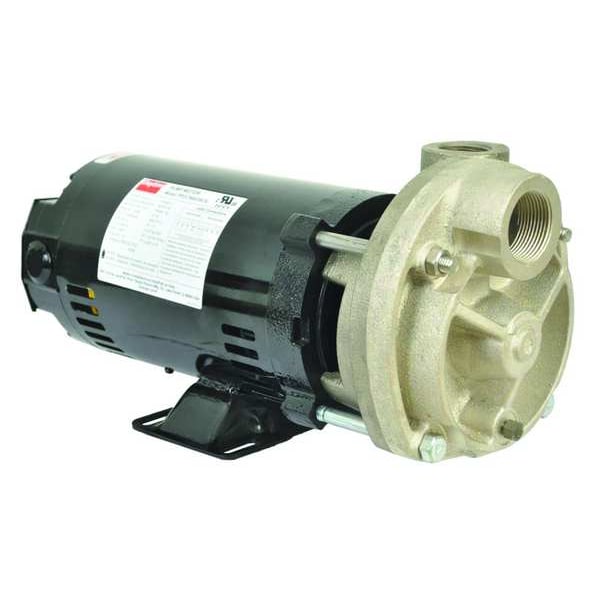

Turbine Pump, 1/2 HP, 115 to 230V, 3450 rpm

  • Mfr # 53EC03

  • Zoro # G2122193

product price:  $832.99
/ea
Free Shipping & Returns

Key Features

HP
1/2 hp
Voltage
115/230
Wetted Materials
316 Stainless Steel, Bronze, Buna-N, Carbon, Cast Iron, Ceramic
Seal Material
304 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
140 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
53EC03
Zoro #
G2122193
UPC #
-
Country of Origin
India

Dimensions

Height
7 1/2 in
Max. Dia. Solids
0.25 Microns
Width
6 3/4 in
Manufacturers Warranty Length
1 yr
Compatible Discharge Pipe Size
3/4 in
Overall Width
6.75 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
3/4 in
Solid Diameter (Maximum)
0.25 micron
Overall Height
7.5 in
Motor Frame Size
56J
Discharge Diameter
3/4 in
Inlet Diameter
3/4 in

Details

HP
1/2 hp
Voltage
115/230
Wetted Materials
316 Stainless Steel, Bronze, Buna-N, Carbon, Cast Iron, Ceramic
Seal Material
304 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
140 psi
Inlet (In.)
3/4 NPT
Amps
8.4/4.8
GPM @ 75 PSI
1.9
Installation Position
Horizontal
Inlet
3/4 in NPT
GPM @ 80 PSI
1.7
Overload Protection
yes
Inlet Pressure
150 psi
Impeller Material
Bronze
GPM @ 100 PSI
1.3
Housing Material
Cast iron
Motor Ambient Temp. Rating
40 Degrees C
Agency Compliance
UL Listed
GPM @ 40 PSI
2.8
GPM @ 60 PSI
2.3
Item
Turbine Pump
GPM @ 90 PSI
1.5
Max. Specific Gravity
1
Pump RPM
3,450
Hz
60
GPM @ 50 PSI
2.6
Motor Enclosure
Open Drip Proof
Phase
Single
Frame
56J
GPM @ 10 PSI
3.8
Max. Case Pressure
200 psi
Impeller Type
Regenerative Turbine
GPM @ 30 PSI
3.0
Duty
Continuous
Best Efficiency GPM @ Head
2.0 @ 85 psi
Motor RPM
3,450 RPM
Motor Type
Capacitor-Start/Run
GPM @ 20 PSI
3.4
Outlet
3/4 in NPT
Max. Liquid Temp.
230 Degrees F
Best Efficiency GPM @ PSI
2.0 @ 85
Port Rotation
90 Degrees Increments
Bearing Type
Ball
Thermal Protection
yes
Flow Rate @ 90 psi
1.5 gpm
Flow Rate @ 20 psi
3.4 gpm
Impeller Design
Peripheral Vaned
Flow Rate @ 40 psi
2.8 gpm
Discharge Type
NPT
Wetted Material
316 Stainless Steel, Bronze, Buna-N, Carbon, Cast Iron, Ceramic
Flow Rate @ 50 psi
2.6 gpm
NPSHr
346.5 ft
Horsepower
1/2 hp
Minimum Flow Rate
1.5 gpm
Flow Rate @ 70 psi
2 gpm
Flow Rate @ 10 psi
3.8 gpm
Motor Frame Designation
56J
Compatible with Media Type
Non-Flammable Liquids, Water
Maximum Media Temperature
230 Degrees F
Flow Rate @ 100 psi
1.3 gpm
Features
Seals and an Easily Accessible Drain Plug, Spray Equipment
Flow Rate @ 30 psi
3 gpm
Seal Type
Mechanical
Mounting Orientation
Horizontal
Thermal Overload Protection
Yes
Intake Type
NPT
Pump Housing Material
Cast Iron
Frequency
60 Hz
Specific Gravity (Maximum)
1
Flow Rate @ 80 psi
1.7 gpm
Nameplate Voltage
115/230V AC
Standards
UL Recognized Motor
Case Pressure (Maximum)
200 psi
Maximum RPM
3,450 RPM
Flow Rate @ 15 psi
3.6 gpm
Maximum Flow Rate
3.8 gpm
Duty Cycle
Continuous
Best Efficiency Head
85 ft
Shut Off Pressure (Maximum)
140 psi
Flow Rate @ 60 psi
2.3 gpm
Motor Ambient Temperature (Maximum)
104 Degrees F
Shaft Seal Material
304 Stainless Steel/Buna-N/Carbon/Ceramic
Ambient Temperature - Maximum
104 Degrees F
Electrical Connection Type
Hardwired
Shut Off Pressure - Maximum
140 psi
Media Temperature - Minimum
-20 Degrees F
Feet of Head (Maximum)
100 ft
Media Temperature - Maximum
230 Degrees F
Shaft Seal Type
Mechanical
Motor Design
Capacitor-Start/Run
Full Load Current
8.4/4.8
Pumping Application
Boiler Feed, Condensate Return, Liquid Transfer, Booster Service, Reverse Osmosis and Water Treatment
Case Pressure - Maximum
200 psi
Priming
Self-Priming
Chemical Compatibility
Non-Flammable Liquids, Water
Pump Design
Regenerative Turbine
Power Source
Electric Motor
Operation
Manual
Best Efficiency Flow
2.3 gpm
Number of Stages
1
Flow Rate (Maximum)
3.8 gpm
Flow Rate (Minimum)
1.5 gpm
Power Source - TS Only
Electric Motor

Description

Turbine Pump, Phase Single, Pump Housing Material Cast Iron, Motor Enclosure Open Dripproof, Horsepower 1/2 hp, Nameplate Voltage 115/230V AC, Shut Off Pressure (Maximum) 140 psi, Maximum Flow Rate 3.8 gpm, Flow Rate @ 10 psi 3.8 gpm, Flow Rate @ 20 psi 3.4 gpm, Flow Rate @ 30 psi 3 gpm, Compatible Intake Pipe Size 3/4 in, Compatible Discharge Pipe Size 3/4 in, Discharge Type NPT, Motor Type Capacitor-Start/Run, Best Efficiency Head 85 ft, Case Pressure (Maximum) 200 psi
