  9. Turbine Pump, 2 HP, 1 Ph, 16.6/8.3 Amp

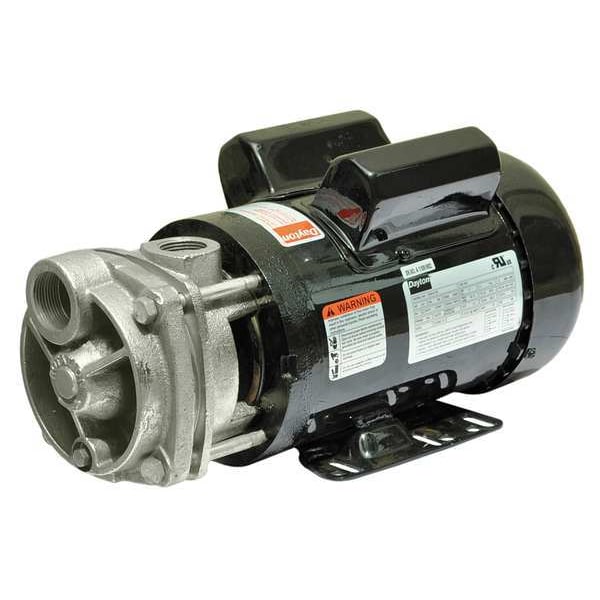

Dayton Turbine Pump, 2 HP, 1 Ph, 16.6/8.3 Amp 4JPG1 - main

Turbine Pump, 2 HP, 1 Ph, 16.6/8.3 Amp

  • Mfr # 4JPG1

  • Zoro # G0983105

product price: $1,484.99
/ea
Free Shipping & Returns

Key Features

HP
2 hp
Voltage
115/208-230
Wetted Materials
Bronze, Carbon, Cast Iron,Buna-N, Ceramic and 316 Stainless Steel
Seal Material
316 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
100 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4JPG1
Zoro #
G0983105
UPC #
190735327142
Country of Origin
India

Dimensions

Height
8 1/4 in
Width
8 7/8 in
Overall Width
8.88 in
Overall Height
8.25 in
Compatible Discharge Pipe Size
1 in
Compatible Intake Pipe Size
1 1/4 in

Details

HP
2 hp
Voltage
115/208-230
Wetted Materials
Bronze, Carbon, Cast Iron,Buna-N, Ceramic and 316 Stainless Steel
Seal Material
316 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
100 psi
Max. Specific Gravity
1
GPM @ 10 PSI
22.5
Inlet (In.)
1-1/4
Inlet
1-1/4 in
GPM @ 75 PSI
15.5
Phase
Single
Amps
16.6/9.4-8.3
Outlet
1 in
Impeller Type
Open
Impeller Material
Bronze
GPM @ 30 PSI
20.5
GPM @ 40 PSI
19.4
Motor Type
Capacitor-Start/Run
Hz
60
Max. Case Pressure
200 psi
Bearing Type
Ball
Item
Turbine Pump
Duty
Continuous
Agency Compliance
Motor is UL Recognized
GPM @ 90 PSI
7.4
Housing Material
Cast Iron with nickel plating
Motor RPM
3,450 RPM
Motor Enclosure
Totally Enclosed Fan Cooled (TEFC)
Inlet Pressure
138 psi
Frame
56J
Includes
OIPM
GPM @ 20 PSI
21.5
Best Efficiency GPM @ Head
15.5 @ 75 ft
GPM @ 60 PSI
17.2
GPM @ 50 PSI
18.3
GPM @ 80 PSI
14.9
Standards
UL Listed
Features
Designed to Handle Liquids with Entrained Air
Flow Rate @ 10 psi
22.5 gpm
Frequency
60 Hz
Flow Rate @ 20 psi
21.5 gpm
Best Efficiency Head
75 ft
Case Pressure (Maximum)
200 psi
Priming
Self-Priming
Flow Rate @ 80 psi
14.9 gpm
Horsepower
2 hp
Duty Cycle
Continuous
Seal Type
Mechanical Seal
Flow Rate @ 100 psi
0 gpm
Maximum Flow Rate
22.5 gpm
Specific Gravity (Maximum)
1
Wetted Material
316 Stainless Steel, Bronze, Buna-N, Carbon, Cast Iron, Ceramic
Intake Type
NPT
Operation
Manual
Minimum Media Temperature
-20 Degrees F
Pump Housing Material
Cast Iron
Maximum RPM
3,450 RPM
Flow Rate @ 30 psi
20.5 gpm
Nameplate Voltage
115/208-230V AC
Flow Rate @ 50 psi
18.3 gpm
Flow Rate @ 60 psi
17.2 gpm
Motor Frame Designation
56J
Flow Rate @ 90 psi
7.4 gpm
Discharge Type
NPT
Flow Rate @ 40 psi
19.4 gpm
Minimum Flow Rate
7.4 gpm
Impeller Design
Open
NPSHr
138 psi
Shut Off Pressure (Maximum)
100 psi

Description

Turbine Pump, Phase Single, Pump Housing Material Cast Iron, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower 2 hp, Nameplate Voltage 115/208-230V AC, Shut Off Pressure (Maximum) 100 psi, Maximum Flow Rate 22.5 gpm, Flow Rate @ 10 psi 22.5 gpm, Flow Rate @ 20 psi 21.5 gpm, Flow Rate @ 30 psi 20.5 gpm, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Type Capacitor-Start/Run, Best Efficiency Head 75 ft, Case Pressure (Maximum) 200 psi
