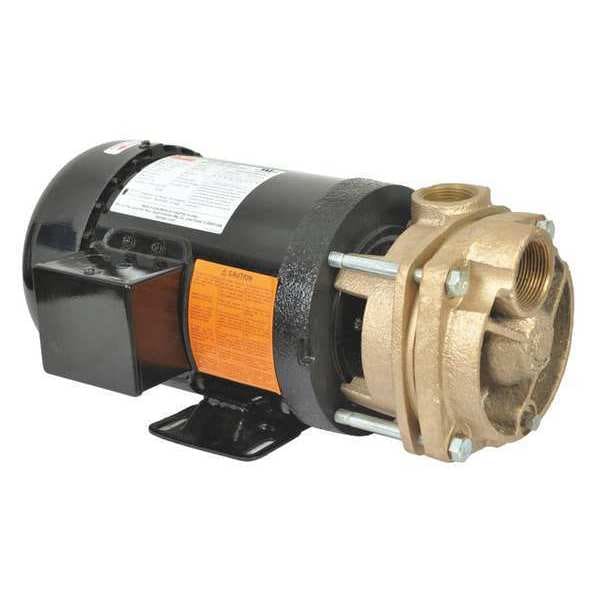

Turbine Pump, 2 HP, 208-230 to 460V

  • Mfr # 53EC02
  • Zoro # G2042761
product price:
$
1,009.99
/ea
Free Shipping & Returns

Key Features

HP
2 hp
Voltage
230/460
Wetted Materials
Bronze, Buna-N, Carbon, Ceramic and 304 Stainless Steel
Seal Material
304 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
100 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
53EC02
Zoro #
G2042761
UPC #
-
Country of Origin
India
HP
2 hp
Voltage
230/460
Wetted Materials
Bronze, Buna-N, Carbon, Ceramic and 304 Stainless Steel
Seal Material
304 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
100 psi
GPM @ 40 PSI
19.4
Housing Material
Bronze
Port Rotation
90 Degrees Increments
Impeller Type
Regenerative Turbine
Motor Enclosure
Totally Enclosed Fan Cooled
GPM @ 80 PSI
14.9
Motor Type
3-Phase
Max. Specific Gravity
1
Best Efficiency GPM @ Head
16.0 @ 75 psi
Best Efficiency GPM @ PSI
16.0 @ 75
Phase
Three
Hz
60 Hz
Bearing Type
Ball
Pump RPM
3,450
Duty
Continuous
Motor Ambient Temp. Rating
40 Degrees C
Inlet Pressure
150 psi
Max. Liquid Temp.
230 Degrees F
Agency Compliance
UL Listed
Max. Case Pressure
200 psi
Impeller Material
Bronze
Item
Turbine Pump
Outlet
1 in FNPT
GPM @ 90 PSI
10.0
GPM @ 75 PSI
15.5
Overload Protection
No
Motor RPM
3,450 RPM
Inlet (In.)
1-1/4 FNPT
Thermal Protection
No
GPM @ 20 PSI
21.5
Inlet
1-1/4 in FNPT
GPM @ 60 PSI
17.2
GPM @ 50 PSI
18.3
Installation Position
Horizontal
GPM @ 30 PSI
20.5
Amps
5.8/2.9
GPM @ 10 PSI
22.5
Frame
56J
NPSHr
346.5 ft
Duty Cycle
Continuous
Flow Rate @ 50 psi
18.3 gpm
Flow Rate @ 10 psi
22.5 gpm
Maximum Flow Rate
22.5 gpm
Horsepower
2 hp
Flow Rate @ 80 psi
14.9 gpm
Features
Seals and an Easily Accessible Drain Plug, Spray Equipment
Pump Housing Material
Bronze
Mounting Orientation
Horizontal
Best Efficiency Head
75 ft
Flow Rate @ 40 psi
19.4 gpm
Case Pressure (Maximum)
200 psi
Intake Type
NPT
Maximum RPM
3,450 RPM
Nameplate Voltage
230/460V AC
Motor Frame Designation
56J
Discharge Type
NPT
Standards
UL Recognized Motor
Flow Rate @ 30 psi
20.5 gpm
Frequency
60 Hz
Motor Ambient Temperature (Maximum)
104 Degrees F
Flow Rate @ 15 psi
22 gpm
Compatible with Media Type
Non-Flammable Liquids, Water
Impeller Design
Peripheral Vaned
Seal Type
Mechanical
Flow Rate @ 90 psi
10 gpm
Thermal Overload Protection
No
Flow Rate @ 70 psi
16.1 gpm
Flow Rate @ 60 psi
17.2 gpm
Flow Rate @ 20 psi
21.5 gpm
Maximum Media Temperature
230 Degrees F
Shut Off Pressure (Maximum)
100 psi
Minimum Flow Rate
10 gpm
Wetted Material
304 Stainless Steel, Bronze, Buna-N, Carbon, Ceramic
Specific Gravity (Maximum)
1
Number of Stages
1
Power Source
Electric Motor
Best Efficiency Flow
18.3 gpm
Operation
Manual
Shaft Seal Material
304 Stainless Steel/Buna-N/Carbon/Ceramic
Priming
Self-Priming
Shut Off Pressure - Maximum
100 psi
Media Temperature - Minimum
-20 Degrees F
Pumping Application
Boiler Feed, Condensate Return, Liquid Transfer, Booster Service, Reverse Osmosis and Water Treatment
Pump Design
Regenerative Turbine
Full Load Current
5.0/2.5
Electrical Connection Type
Hardwired
Case Pressure - Maximum
200 psi
Chemical Compatibility
Non-Flammable Liquids, Water
Feet of Head (Maximum)
80 ft
Shaft Seal Type
Mechanical
Media Temperature - Maximum
230 Degrees F
Flow Rate (Maximum)
22.5 gpm
Flow Rate (Minimum)
10 gpm
Motor Design
Three-Phase
Ambient Temperature - Maximum
104 Degrees F
Power Source - TS Only
Electric Motor
Power Source - old
Electric Motor
RPM (Maximum)
3,450 RPM

Dimensions

Manufacturers Warranty Length
1 yr
Width
9 3/4 in
Max. Dia. Solids
0.25 Microns
Height
6 5/16 in
Manufacturer Warranty Length
1 yr
Solid Diameter (Maximum)
0.25 micron
Compatible Discharge Pipe Size
1 in
Compatible Intake Pipe Size
1 1/4 in
Overall Width
9.75 in
Overall Height
6.31 in
Inlet Diameter
1 1/4 in
Discharge Diameter
1 in
Motor Frame Size
56J
Fits Chest Size
Seals and an Easily Accessible Drain Plug, Spray Equipment

Description

Turbine Pump, Phase Three, Pump Housing Material Bronze, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower 2 hp, Nameplate Voltage 230/460V AC, Shut Off Pressure (Maximum) 100 psi, Maximum Flow Rate 22.5 gpm, Flow Rate @ 10 psi 22.5 gpm, Flow Rate @ 20 psi 21.5 gpm, Flow Rate @ 30 psi 20.5 gpm, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Type 3-Phase, Best Efficiency Head 75 ft, Case Pressure (Maximum) 200 psi
