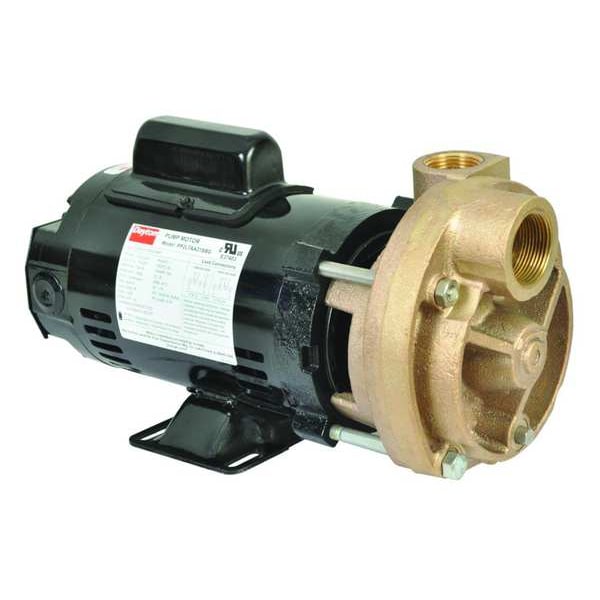

Dayton Turbine Pump, 3/4 HP, 115 to 230V, 3450 rp 53EA96 - main

Turbine Pump, 3/4 HP, 115 to 230V, 3450 rp

  • Mfr # 53EA96

  • Zoro # G2042798

product price: $825.99
/ea
Free Shipping & Returns

Key Features

HP
3/4 hp
Voltage
115/230
Wetted Materials
Bronze, Buna-N, Carbon, Ceramic and 304 Stainless Steel
Seal Material
304 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
120 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
53EA96
Zoro #
G2042798
UPC #
-
Country of Origin
India

Dimensions

Manufacturers Warranty Length
1 yr
Width
6 3/4 in
Max. Dia. Solids
0.25 Microns
Height
7 1/2 in
Compatible Intake Pipe Size
1 1/4 in
Compatible Discharge Pipe Size
1 in
Solid Diameter (Maximum)
0.25 micron
Overall Width
6.75 in
Overall Height
7.5 in
Manufacturer Warranty Length
1 yr

Details

HP
3/4 hp
Voltage
115/230
Wetted Materials
Bronze, Buna-N, Carbon, Ceramic and 304 Stainless Steel
Seal Material
304 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
120 psi
Frame
56J
GPM @ 60 PSI
6.1
GPM @ 80 PSI
5.5
Installation Position
Horizontal
Inlet (In.)
1-1/4 FNPT
Max. Liquid Temp.
230 Degrees F
Overload Protection
yes
GPM @ 75 PSI
5.5
Best Efficiency GPM @ Head
6.0 @ 75 psi
Motor Ambient Temp. Rating
40 Degrees C
Motor RPM
3,450 RPM
Motor Type
Capacitor-Start/Run
Best Efficiency GPM @ PSI
6.0 @ 75
Motor Enclosure
Open Dripproof (ODP)
Amps
11.3/5.6
Outlet
1 in FNPT
Phase
Single
Hz
60
GPM @ 30 PSI
7.1
Inlet
1-1/4 in FNPT
GPM @ 100 PSI
4.8
Port Rotation
90 Degrees Increments
Thermal Protection
yes
GPM @ 10 PSI
7.6
Max. Specific Gravity
1
GPM @ 40 PSI
6.8
Agency Compliance
UL Listed
GPM @ 20 PSI
7.3
Pump RPM
3,450
Inlet Pressure
150 psi
Impeller Material
Bronze
Max. Case Pressure
200 psi
Duty
Continuous
GPM @ 50 PSI
6.4
Item
Turbine Pump
Bearing Type
Ball
GPM @ 90 PSI
5.2
Housing Material
Bronze
Impeller Type
Regenerative Turbine
Seal Type
Mechanical
Motor Ambient Temperature (Maximum)
104 Degrees F
Standards
UL Listed
Maximum Flow Rate
7.6 gpm
Compatible with Media Type
Non-Flammable Liquids, Water
Intake Type
NPT
Wetted Material
304 Stainless Steel, Bronze, Buna-N, Carbon, Ceramic
Flow Rate @ 80 psi
5.5 gpm
Flow Rate @ 120 psi
0 gpm
Flow Rate @ 20 psi
7.3 gpm
Pump Housing Material
Bronze
Case Pressure (Maximum)
200 psi
Flow Rate @ 60 psi
6.1 gpm
Mounting Orientation
Horizontal
Flow Rate @ 90 psi
5.2 gpm
NPSHr
150 psi
Flow Rate @ 50 psi
6.4 gpm
Motor Frame Designation
56J
Flow Rate @ 10 psi
7.6 gpm
Maximum RPM
3,450 RPM
Specific Gravity (Maximum)
1
Features
Boiler Feed, Condensation Return, Liquid Transfer, Pressure Service, Reverse Osmosis Filtration, Seals and an Easily Accessible Drain Plug, Spray Equipment
Best Efficiency Head
75 ft
Duty Cycle
Continuous
Nameplate Voltage
115/230V AC
Minimum Flow Rate
4.8 gpm
Impeller Design
Regenerative Turbine
Frequency
60 Hz
Discharge Rotation
90 Degrees Increments
Horsepower
3/4 hp
Flow Rate @ 40 psi
6.8 gpm
Thermal Overload Protection
Yes
Flow Rate @ 100 psi
4.8 gpm
Shut Off Pressure (Maximum)
120 psi
Flow Rate @ 30 psi
7.1 gpm
Maximum Media Temperature
230 Degrees F
Discharge Type
NPT

Description

Turbine Pump, Phase Single, Pump Housing Material Bronze, Motor Enclosure Open Dripproof, Horsepower 3/4 hp, Nameplate Voltage 115/230V AC, Shut Off Pressure (Maximum) 120 psi, Maximum Flow Rate 7.6 gpm, Flow Rate @ 10 psi 7.6 gpm, Flow Rate @ 20 psi 7.3 gpm, Flow Rate @ 30 psi 7.1 gpm, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Type Capacitor-Start/Run, Best Efficiency Head 75 ft, Case Pressure (Maximum) 200 psi

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
