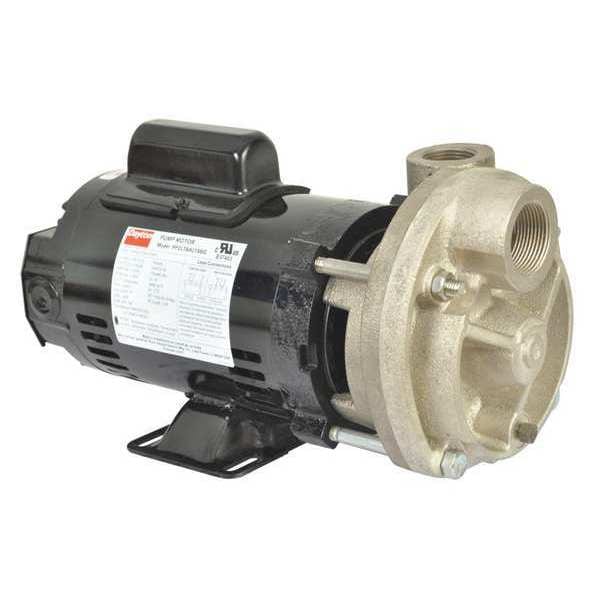

Dayton Turbine Pump, 3/4 HP, 115 to 230V, 3450 rp 53EC04 - main

Turbine Pump, 3/4 HP, 115 to 230V, 3450 rp

  • Mfr # 53EC04

  • Zoro # G2042877

product price: $552.99
/ea
Free Shipping & Returns

Key Features

HP
3/4 hp
Voltage
115/230
Wetted Materials
316 Stainless Steel, Bronze, Buna-N, Carbon, Cast Iron, Ceramic
Seal Material
304 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
120 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
53EC04
Zoro #
G2042877
UPC #
190735938089
Country of Origin
India

Dimensions

Width
6 3/4 in
Height
7 1/2 in
Max. Dia. Solids
0.25 Microns
Manufacturers Warranty Length
1 yr
Compatible Discharge Pipe Size
1 in
Overall Width
6.75 in
Overall Height
7.5 in
Compatible Intake Pipe Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Solid Diameter (Maximum)
0.25 micron

Details

HP
3/4 hp
Voltage
115/230
Wetted Materials
316 Stainless Steel, Bronze, Buna-N, Carbon, Cast Iron, Ceramic
Seal Material
304 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
120 psi
Item
Turbine Pump
Motor RPM
3,450 RPM
Pump RPM
3,450
GPM @ 80 PSI
5.5
Best Efficiency GPM @ Head
6.0 @ 75 psi
Bearing Type
Ball
GPM @ 10 PSI
7.6
Max. Liquid Temp.
230 Degrees F
GPM @ 50 PSI
6.4
Motor Type
Capacitor-Start/Run
Hz
60
Max. Specific Gravity
1
Agency Compliance
UL Listed
Thermal Protection
yes
Frame
56J
Amps
11.3/5.6
Outlet
1 in FNPT
Overload Protection
yes
GPM @ 75 PSI
5.7
Duty
Continuous
Impeller Type
Regenerative Turbine
Inlet (In.)
1-1/4 FNPT
GPM @ 40 PSI
6.8
Phase
Single
Port Rotation
90 Degrees Increments
Inlet Pressure
150 psi
GPM @ 100 PSI
4.8
GPM @ 60 PSI
6.1
Housing Material
Cast iron
Motor Ambient Temp. Rating
40 Degrees C
Inlet
1-1/4 in FNPT
Impeller Material
Bronze
GPM @ 90 PSI
5.2
Max. Case Pressure
200 psi
Installation Position
Horizontal
GPM @ 30 PSI
7.1
Motor Enclosure
Open Dripproof (ODP)
GPM @ 20 PSI
7.3
Best Efficiency GPM @ PSI
6.0 @ 75
Horsepower
3/4 hp
Duty Cycle
Continuous
Best Efficiency Head
75 ft
Flow Rate @ 80 psi
5.5 gpm
NPSHr
150 psi
Flow Rate @ 50 psi
6.4 gpm
Seal Type
Mechanical
Pump Housing Material
Cast Iron
Standards
UL Listed
Motor Frame Designation
56J
Shut Off Pressure (Maximum)
120 psi
Nameplate Voltage
115/230V AC
Features
Boiler Feed, Condensation Return, Liquid Transfer, Pressure Service, Reverse Osmosis Filtration, Seals and an Easily Accessible Drain Plug, Spray Equipment
Flow Rate @ 10 psi
7.6 gpm
Flow Rate @ 20 psi
7.3 gpm
Maximum Flow Rate
7.6 gpm
Flow Rate @ 60 psi
6.1 gpm
Frequency
60 Hz
Discharge Rotation
90 Degrees Increments
Maximum RPM
3,450 RPM
Discharge Type
NPT
Flow Rate @ 120 psi
0 gpm
Wetted Material
316 Stainless Steel, Bronze, Buna-N, Carbon, Cast Iron, Ceramic
Motor Ambient Temperature (Maximum)
104 Degrees F
Maximum Media Temperature
230 Degrees F
Compatible with Media Type
Non-Flammable Liquids, Water
Flow Rate @ 30 psi
7.1 gpm
Case Pressure (Maximum)
200 psi
Specific Gravity (Maximum)
1
Minimum Flow Rate
5.2 gpm
Thermal Overload Protection
Yes
Impeller Design
Regenerative Turbine
Flow Rate @ 90 psi
5.2 gpm
Flow Rate @ 40 psi
6.8 gpm
Mounting Orientation
Horizontal
Intake Type
NPT
Flow Rate @ 100 psi
4.8 gpm

Description

Turbine Pump, Phase Single, Pump Housing Material Cast Iron, Motor Enclosure Open Dripproof, Horsepower 3/4 hp, Nameplate Voltage 115/230V AC, Shut Off Pressure (Maximum) 120 psi, Maximum Flow Rate 7.6 gpm, Flow Rate @ 10 psi 7.6 gpm, Flow Rate @ 20 psi 7.3 gpm, Flow Rate @ 30 psi 7.1 gpm, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Type Capacitor-Start/Run, Best Efficiency Head 75 ft, Case Pressure (Maximum) 200 psi

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
