Shop DAYTON

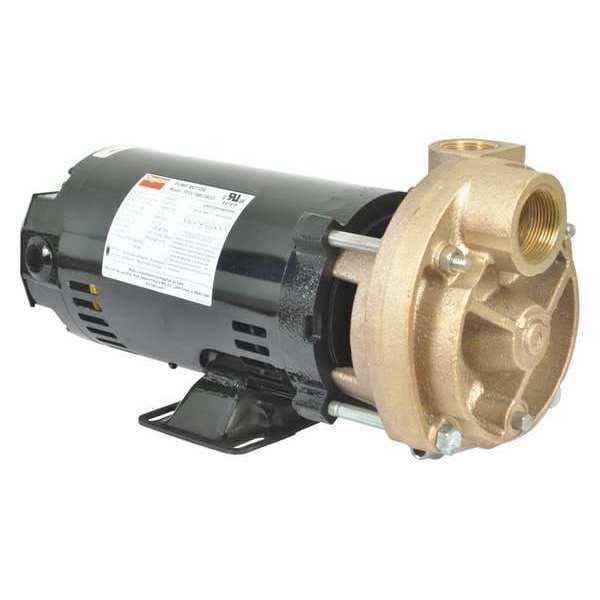

Turbine Pump, 3/4 HP, 208-230 to 460V

  • Mfr # 53EA97

  • Zoro # G2042743

product price:  $832.99
/ea
Free Shipping & Returns

Key Features

HP
3/4 hp
Voltage
208-230/460
Wetted Materials
Bronze, Buna-N, Carbon, Ceramic and 304 Stainless Steel
Seal Material
304 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
120 psi
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
53EA97
Zoro #
G2042743
UPC #
00194484302894
Country of Origin
India

Dimensions

Max. Dia. Solids
0.25 Microns
Manufacturers Warranty Length
1 yr
Height
7 1/2 in
Width
6 3/4 in
Solid Diameter (Maximum)
0.25 micron
Overall Height
7.5 in
Compatible Discharge Pipe Size
1 in
Compatible Intake Pipe Size
1 1/4 in
Overall Width
6.75 in
Manufacturer Warranty Length
1 yr
Discharge Diameter
1 in
Motor Frame Size
56J
Inlet Diameter
1 1/4 in

Details

HP
3/4 hp
Voltage
208-230/460
Wetted Materials
Bronze, Buna-N, Carbon, Ceramic and 304 Stainless Steel
Seal Material
304 Stainless Steel (Spring), Buna-N/Carbon/Ceramic (Face)
Max. Pressure
120 psi
GPM @ 90 PSI
5.2
Inlet
1-1/4 in FNPT
Item
Turbine Pump
GPM @ 30 PSI
7.1
Overload Protection
No
Agency Compliance
UL Listed
Hz
60
Inlet Pressure
150 psi
GPM @ 20 PSI
7.3
Pump RPM
3,450
Installation Position
Horizontal
GPM @ 60 PSI
6.1
Motor RPM
3,450 RPM
Port Rotation
90 Degrees Increments
GPM @ 75 PSI
5.5
Max. Case Pressure
200 psi
Best Efficiency GPM @ PSI
6.0 @ 75
GPM @ 100 PSI
4.8
Housing Material
Bronze
Impeller Type
Regenerative Turbine
Impeller Material
Bronze
Best Efficiency GPM @ Head
6.0 @ 75 psi
GPM @ 10 PSI
7.6
Bearing Type
Ball
Inlet (In.)
1-1/4 FNPT
Thermal Protection
No
Frame
56J
GPM @ 50 PSI
6.4
Outlet
1 in FNPT
GPM @ 40 PSI
6.8
GPM @ 80 PSI
5.5
Max. Liquid Temp.
230 Degrees F
Amps
2.5/1.2
Motor Enclosure
Open Drip Proof
Duty
Continuous
Motor Ambient Temp. Rating
40 Degrees C
Max. Specific Gravity
1
Motor Type
3-Phase
Phase
Three
NPSHr
150 psi
Wetted Material
304 Stainless Steel, Bronze, Buna-N, Carbon, Ceramic
Shut Off Pressure (Maximum)
120 psi
Flow Rate @ 15 psi
7.4 gpm
Minimum Flow Rate
4.8 gpm
Flow Rate @ 90 psi
5.2 gpm
Flow Rate @ 30 psi
7.1 gpm
Compatible with Media Type
Non-Flammable Liquids, Water
Intake Type
NPT
Specific Gravity (Maximum)
1
Maximum Flow Rate
7.6 gpm
Thermal Overload Protection
No
Duty Cycle
Continuous
Flow Rate @ 50 psi
6.4 gpm
Impeller Design
Peripheral Vaned
Pump Housing Material
Bronze
Frequency
60 Hz
Maximum Media Temperature
230 Degrees F
Flow Rate @ 20 psi
7.3 gpm
Motor Ambient Temperature (Maximum)
104 Degrees F
Best Efficiency Head
75 ft
Mounting Orientation
Horizontal
Flow Rate @ 70 psi
5.8 gpm
Horsepower
3/4 hp
Discharge Type
NPT
Flow Rate @ 10 psi
7.6 gpm
Nameplate Voltage
230/460V AC
Features
Seals and an Easily Accessible Drain Plug, Spray Equipment
Standards
UL Recognized Motor
Case Pressure (Maximum)
200 psi
Seal Type
Mechanical
Flow Rate @ 60 psi
6.1 gpm
Flow Rate @ 80 psi
5.5 gpm
Maximum RPM
3,450 RPM
Motor Frame Designation
56J
Flow Rate @ 100 psi
4.8 gpm
Flow Rate @ 40 psi
6.8 gpm
Ambient Temperature - Maximum
104 Degrees F
Number of Stages
1
Case Pressure - Maximum
200 psi
Flow Rate (Minimum)
4.8 gpm
Pumping Application
Boiler Feed, Condensate Return, Liquid Transfer, Booster Service, Reverse Osmosis and Water Treatment
Flow Rate (Maximum)
7.6 gpm
Media Temperature - Minimum
-20 Degrees F
Priming
Self-Priming
Power Source
Electric Motor
Best Efficiency Flow
5.5 gpm
Shaft Seal Type
Mechanical
Operation
Manual
Shaft Seal Material
304 Stainless Steel/Buna-N/Carbon/Ceramic
Media Temperature - Maximum
230 Degrees F
Feet of Head (Maximum)
100 ft
Chemical Compatibility
Non-Flammable Liquids, Water
Full Load Current
2.5/1.2
Motor Design
Three-Phase
Shut Off Pressure - Maximum
120 psi
Pump Design
Regenerative Turbine
Electrical Connection Type
Hardwired
Power Source - TS Only
Electric Motor

Description

Turbine Pump, Phase Three, Pump Housing Material Bronze, Motor Enclosure Open Dripproof, Horsepower 3/4 hp, Nameplate Voltage 208-230/460V AC, Shut Off Pressure (Maximum) 120 psi, Maximum Flow Rate 7.6 gpm, Flow Rate @ 10 psi 7.6 gpm, Flow Rate @ 20 psi 7.3 gpm, Flow Rate @ 30 psi 7.1 gpm, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Type 3-Phase, Best Efficiency Head 75 ft, Case Pressure (Maximum) 200 psi

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
