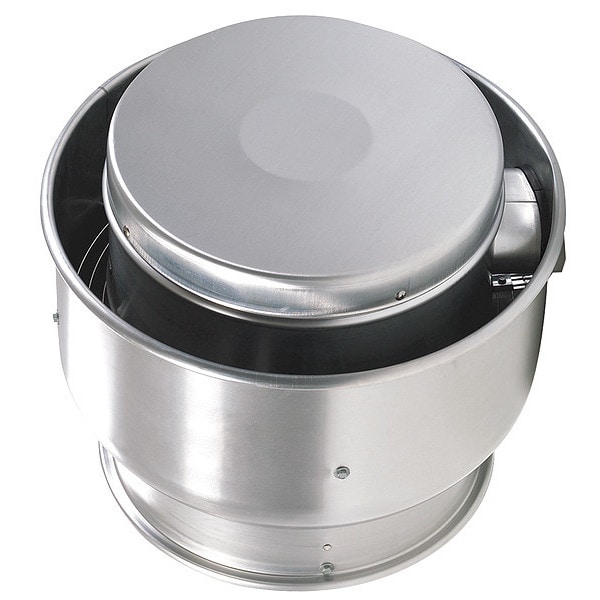

Dayton Upblast Less Drive Package, 12-1/2 In 5DVL7

Upblast Less Drive Package, 12-1/2 In (Discontinued)

Mfr # 5DVL7
Zoro # G1626143

Get a 10% off coupon

Free 30-day returns

Get 30 days to pay with Net 30

Unlock tax-exempt savings

Specifications

Product Information

MFR #

5DVL7

Zoro #

G1626143

UPC #

190735342800

Country of Origin

United States

Dimensions

Base Size - Roof Ventilators

19 3/4 in dia

Dimension B

24 7/8 in

Recommended Damper Size (In.)

12 x 12

Overall Dia.

24 7/8 in

Wheel Dia.

12 1/2 in

Dimension C

25 1/8 in

Overall Height

25 1/8 in

Dimension D

17 3/8 in

Dimension E

16 7/8 in

Shaft Dia. Sheave End

3/4 in

Dimension A

19 3/4 in

Base Height

1.8 in

Shaft Dia. Wheel End

3/4 in

Damper Size

12 x 12 in

Base Diameter

19 3/4 in

Cutout Length

12.5 in

Cutout Size

12.5 in L x 12.2 in W

Base Dimension

19 3/4 in Round

Propeller Shaft Diameter

3/4 in

Housing Length

24.9 in

Housing Width

24.9 in

Overall Diameter

24 7/8 in

Wheel Diameter

12 1/2 in

Details

Item - Roof Ventilators

Upblast Ventilator

Drive Package With Motor Included

Duty Rating - Roof Ventilators

Standard

Drive Type - Roof Ventilators

Belt Drive

Mounting Location - Roof Ventilators

Wall

Number of Speeds

CFM Range

1665 to 2037 @ 0.0 in SP

Recommended Damper Stock No.

4HX74

Standards

AMCA Sound and Air, UL/cUL 762

Item

Centrifugal Upblast Roof Exhaust Fan

Includes

Mounting Plate, NEMA 1 Junction Box

Housing Material

Aluminum

Wheel Material

Aluminum

Drive Type

Belt Drive

Wheel Type

Backward Inclined

RPM Range

1410 to 1725

Mounting Location

Wall

Motor HP Range

1/4 to 1/2

Max. Inlet Temp.

300 Degrees

Speed Controllable

Bearing Type

Sealed Pillow Block

Features

Air Handling Quality Bearings Meet Minimum of L10-1,00,000 Hours, Leakproof, Nonoverloading Centrifugal Wheel Design

Application

Industrial and Commercial Buildings, Restaurants, Schools

Assembly

Unassembled

Minimum Motor Horsepower

1/4 hp

Spark Resistant Construction Type

Minimum Motor Speed

1,410 RPM

Maximum Noise Level @ 5 Feet

12.2 sones

Safety Features

Fully Rolled Windband

Resistance Properties

Spark Resistant

Electrical Connection

Power Cord

Base Shape

Round

Brake Horsepower

13/50 hp, 17/50 hp, 12/25 hp

Maximum Airflow

2,037 cfm

Maximum Inlet Air Temperature

400 Degrees F

Includes Drive Package

Housing Material Fabrication

Spun

Maximum Static Pressure

1 1/2 in wc

For Airflow (Dependent on Motor)

968 cfm to 2,037 cfm

For Motor Horsepower (Motor Sold Separately)

1/4 hp to 1/2 hp

For High-Static Pressure Applications

Wheel & Housing Material

Aluminum / Aluminum

For Fan Speed (Motor Sold Separately)

1,410 RPM to 1,725 RPM

For Air Type

Kitchen Air

Maximum Motor Speed

1,725 RPM

Minimum Airflow

968 cfm

Grease Capacity

Standard Grease

Sound Level

Fan RPM 1410: 11.1 sones @ 0.000 in SP and 5 ft, 11.6 sones @ 0.125 in SP and 5 ft, 12.2 sones @ 0.250 in SP and 5 ft, 12.5 sones @ 0.375 in SP and 5 ft, 12.6 sones @ 0.500 in SP and 5 ft, 12.7 sones @ 0.625 in SP and 5 ft, 12.7 sones @ 0.750 in SP and 5 ft, 12.5 sones @ 0.875 in SP and 5 ft, 12.3 sones @ 1.000 in SP and 5 ft, Fan RPM 1545: 12.8 sones @ 0.000 in SP and 5 ft, 13.4 sones @ 0.125 in SP and 5 ft, 14.0 sones @ 0.250 in SP and 5 ft, 14.5 sones @ 0.375 in SP and 5 ft, 14.7 sones @ 0.500 in SP and 5 ft, 14.8 sones @ 0.625 in SP and 5 ft, 14.9 sones @ 0.750 in SP and 5 ft, 14.9 sones @ 0.875 in SP and 5 ft, 14.9 sones @ 1.000 in SP and 5 ft, 14.6 sones @ 1.250 in SP and 5 ft, Fan RPM 1725: 15.6 sones @ 0.000 in SP and 5 ft, 16.1 sones @ 0.125 in SP and 5 ft, 16.7 sones @ 0.250 in SP and 5 ft, 17.3 sones @ 0.375 in SP and 5 ft, 17.9 sones @ 0.500 in SP and 5 ft, 18.2 sones @ 0.625 in SP and 5 ft, 18.4 sones @ 0.750 in SP and 5 ft, 18.7 sones @ 0.875 in SP and 5 ft, 18.7 sones @ 1.000 in SP and 5 ft, 18.6 sones @ 1.250 in SP and 5 ft, 18.4 sones @ 1.500 in SP and 5 ft

Motor Location

Out of Airstream

Maximum Fan Speed

1,725 RPM

Maximum Ambient Temperature

300 Degrees F

Includes Motor

Maximum Motor Horsepower

1/2 hp

Mounting Orientation

Vertical

Description

Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Restaurants, Schools, Drive Type Belt Drive, Wheel Diameter 12 1/2 in, Base Diameter 19 3/4 in, Base Length Not Applicable, Base Width Not Applicable, Base Shape Round, Maximum Static Pressure 1 1/2 in wc, Maximum Airflow 2,037 cfm, Minimum Airflow 968 cfm, Maximum Motor Horsepower 1/2 hp, Minimum Motor Horsepower 1/4 hp, Maximum Motor Speed 1,725 RPM, Minimum Motor Speed 1,410 RPM, Assembly Unassembled
