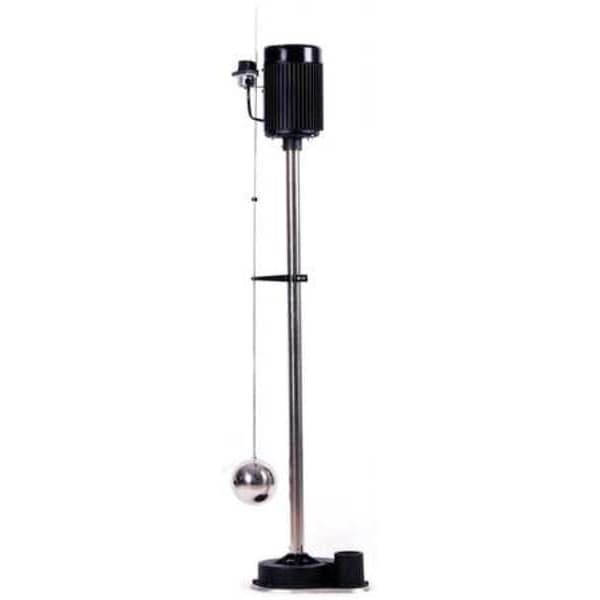

Dayton Upright Sump Pump, 1/2 HP 5URJ6 - main

Upright Sump Pump, 1/2 HP

  • Mfr # 5URJ6

  • Zoro # G2042162

product price: $1,048.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Cast iron
Voltage
115
HP
1/2 hp
Switch Actuation
Vertical Float
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5URJ6
Zoro #
G2042162
UPC #
190735352441
Country of Origin
China

Dimensions

Base to Motor Height
45"
Cord Length
8 ft
Cord Length - Pumps
8 ft.
Base to Motor Height (In.)
45
Min. Sump Pit Dia.
18 in
Height
55"
Max. Dia. Solids
3/4"
Diameter
13"
Cord Size
16/3
Max. Diameter Solids
3/4 in
Discharge Dia.
2 in
Overall Height
55 in
Body Dia.
13 in
Basket Dia.
45 in
Basin Dia.
45 in
Sump Pit Depth - Minimum
24 in
Discharge Diameter
2 in
Body Diameter
13 in
Sump Pit Diameter - Minimum
18 in
Solids Diameter - Maximum
3/4 in

Details

Housing Material
Cast iron
Voltage
115
HP
1/2 hp
Switch Actuation
Vertical Float
Phase
Single
Switch Electrical Connection
Integral
Outlet
2
Body Material
Cast Iron
Switch Type
Vertical
Phase - Pumps
1
Flow Rate @ 10 Ft. of Head
72 gpm
Column Material
Stainless Steel
Pump HP
1/2
Input Phase AC
1
Float Material
Stainless Steel
On Point
11 in
Insulation Class
B
Base Material
Cast Iron
Impeller Material
Cast Iron
Thermal Protection
Auto
Pump Body Material
Cast Iron
Bearing Material
Carbon
Motor Type
PSC
Includes
Manual
Amps - Pumps
6.00
Max. Liquid Temp.
200 Degrees F
GPM of Water @ 15 Ft. of Head
39
GPM of Water @ 10 Ft. of Head
72
Voltage - Pumps
120VAC
GPM of Water @ 20 Ft. of Head
2
Motor RPM
1725
Max. Head
20 ft
Switch Type - Pumps
Vertical
Agency Compliance
cCSAus
Duty
Continuous
Cord Type
SJT
For Use With
Nonflammable Liquids Compatible with Pump Materials of Construction
Item - Sump Pumps
Upright Sump Pump
Amps
6 A
Bearing Type
Sleeve
Impeller Material - Pumps
Cast Iron
Off Point
4 in
Max. Head - Pumps
20 ft.
Hz
60 Hz
Discharge NPT
2" F
Features
An Automatic Float Type Switch, Double Shielded Ball Bearings at Both Ends
Item
Pedestal Sump Pump
GPM of Water @ 5 Ft. of Head
103
Duty Cycle
Continuous
Discharge Standard
NPT
NEC Cord Designation
SJT
Discharge
2 in FNPT
Flow Rate @ 20 Ft. of Head
2 gpm
Alarm Included
No
Flow Rate @ 15 Ft. of Head
39 gpm
RPM
1,725 RPM
Rated Voltage
120V AC
Discharge Gender
Female
Flow Rate @ 5 Ft. of Head
103 gpm
Application
For Pumping Clear Water Or Effluent from Wet Pits, Loading Docks, Boiler Dump Pits, Below Ground Vaults, Elevator Pits and Other Residential, Commercial And Industrial Applications, for Hot Water Applications Up to 200 Degrees Fahrenheit
Standards
cCSAus
Feet of Head - Maximum
20 1/2 ft
Impeller Design
Vortex
Liquid Temperature - Maximum
200 Degrees F
Includes Alarm
No Alarm Included
Volute Material
Cast Iron
Current
6 A
Rotation Speed - Maximum
1,725 RPM
Power Source
Corded Electric
For Media Type
Clear Water, Trash Water
Flow Rate @ 10 ft of Head
72 gpm
Frequency
60 Hz
Horsepower
1/2 hp

Description

Pedestal Sump Pump, HP 1/2 hp, Rated Voltage 120V AC, Hz 60 Hz, Phase - Pumps 1, Amps 6 A, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Off Point 4 in, On Point 11 in, Body Material Cast Iron, Impeller Material Cast Iron, Flow Rate @ 5 Ft. of Head 103 gpm, Flow Rate @ 10 Ft. of Head 72 gpm, Flow Rate @ 15 Ft. of Head 39 gpm, Flow Rate @ 20 Ft. of Head 2 gpm, Max. Diameter Solids 3/4 in, Min. Sump Pit Dia. 18 in, Body Dia. 13 in, Overall Height 55 in, Basin Dia. 45 in
