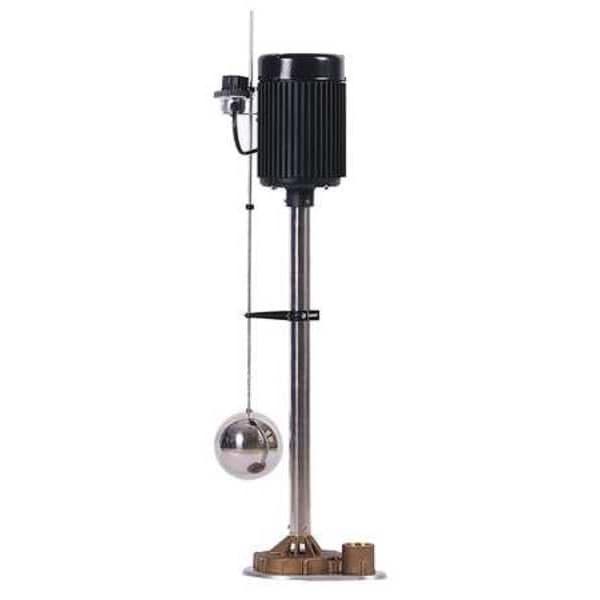

Dayton Upright Sump Pump, 1/3 HP 5URH9 - main

Upright Sump Pump, 1/3 HP

  • Mfr # 5URH9

  • Zoro # G1646881

product price: $889.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Cast Bronze
Voltage
115
HP
1/3 hp
Switch Actuation
Vertical Float
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5URH9
Zoro #
G1646881
UPC #
190735352373
Country of Origin
China

Dimensions

Base to Motor Height
27"
Cord Length
8 ft
Min. Sump Pit Dia.
18 in
Diameter
11"
Max. Diameter Solids
7/16 in
Height
37"
Cord Length - Pumps
8 ft.
Max. Dia. Solids
7/16"
Base to Motor Height (In.)
27
Cord Size
16/3
Overall Height
35 3/4 in
Body Dia.
11 in
Discharge Dia.
1 1/2 in
Basket Dia.
27 in
Basin Dia.
27 in
Body Diameter
11 in
Sump Pit Diameter - Minimum
18 in
Discharge Diameter
1 1/2 in
Solids Diameter - Maximum
1/2 in
Sump Pit Depth - Minimum
24 in

Details

Housing Material
Cast Bronze
Voltage
115
HP
1/3 hp
Switch Actuation
Vertical Float
Phase
Single
Switch Electrical Connection
Integral
Outlet
1-1/2
Body Material
Cast Bronze
Switch Type
Vertical
Phase - Pumps
1
Flow Rate @ 10 Ft. of Head
44 gpm
Bearing Material
Carbon
Hz
60 Hz
Features
An Automatic Float Type Switch, Double Shielded Ball Bearings at Both Ends
Impeller Material - Pumps
Stainless Steel
Motor RPM
1725
Includes
Manual
Item - Sump Pumps
Upright Sump Pump
Motor Type
PSC
GPM of Water @ 5 Ft. of Head
54
Discharge NPT
1-1/2" F
Thermal Protection
Auto
Switch Type - Pumps
Vertical
Cord Type
SJT
Off Point
4 in
Duty
Continuous
Max. Head - Pumps
20 ft.
Insulation Class
B
Float Material
Stainless Steel
Voltage - Pumps
120VAC
GPM of Water @ 15 Ft. of Head
30
Base Material
Stainless Steel
Pump Body Material
Cast Bronze
GPM of Water @ 10 Ft. of Head
44
Max. Head
20 ft
Amps
4 A
For Use With
Nonflammable Liquids Compatible with Pump Materials of Construction
Max. Liquid Temp.
200 Degrees F
Agency Compliance
cCSAus
On Point
11 in
Input Phase AC
1
Bearing Type
Sleeve
Column Material
Stainless Steel
Item
Pedestal Sump Pump
Impeller Material
Stainless Steel
Amps - Pumps
4.00
NEC Cord Designation
SJT
Rated Voltage
120V AC
Flow Rate @ 5 Ft. of Head
54 gpm
Flow Rate @ 15 Ft. of Head
30 gpm
RPM
1,725 RPM
Alarm Included
No
Discharge
1-1/4 in FNPT
Duty Cycle
Continuous
Discharge Standard
NPT
Discharge Gender
Female
Standards
cCSAus
Application
For Pumping Clear Water Or Effluent from Wet Pits, Loading Docks, Boiler Dump Pits, Below Ground Vaults, Elevator Pits and Other Residential, Commercial And Industrial Applications, for Hot Water Applications Up to 200 Degrees Fahrenheit
Horsepower
1/3 hp
Power Source
Corded Electric
Current
4 A
Impeller Design
Vortex
Volute Material
Brass
For Media Type
Clear Water, Trash Water
Rotation Speed - Maximum
1,725 RPM
Feet of Head - Maximum
20 ft
Frequency
60 Hz
Liquid Temperature - Maximum
200 Degrees F
Includes Alarm
No Alarm Included
Flow Rate @ 10 ft of Head
44 gpm

Description

Pedestal Sump Pump, HP 1/3 hp, Rated Voltage 120V AC, Hz 60 Hz, Phase - Pumps 1, Amps 4 A, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Off Point 4 in, On Point 11 in, Body Material Cast Bronze, Impeller Material Stainless Steel, Flow Rate @ 5 Ft. of Head 54 gpm, Flow Rate @ 10 Ft. of Head 44 gpm, Flow Rate @ 15 Ft. of Head 30 gpm, Max. Diameter Solids 7/16 in, Min. Sump Pit Dia. 18 in, Body Dia. 11 in, Overall Height 35 3/4 in, Basin Dia. 27 in
