  11. Vacuum Mtr/Blwr, Thru-Flow, 8.2A, 220W

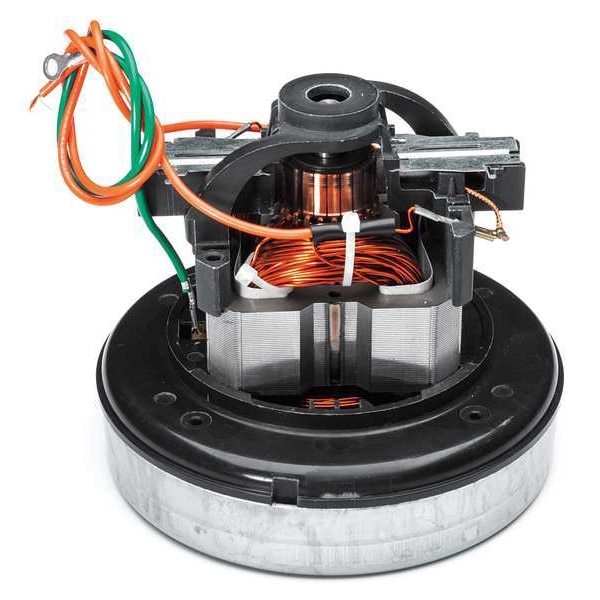

Dayton Vacuum Mtr/Blwr, Thru-Flow, 8.2A, 220W 32ZN77 - main

Vacuum Mtr/Blwr, Thru-Flow, 8.2A, 220W

  • Mfr # 32ZN77

  • Zoro # G9785894

product price: $121.99
/ea
Free Shipping & Returns

Key Features

Discharge
Thru-Flow
Body Dia.
5.7 in
Voltage
120V AC
Blower Stages
1
CFM @ 2-In. Orifice
115 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
32ZN77
Zoro #
G9785894
UPC #
190735260463
Country of Origin
China

Dimensions

Body Dia.
5.7 in
Overall Height
4 7/8 in
Inlet Tube Dia.
2 in

Details

Discharge
Thru-Flow
Voltage
120V AC
Blower Stages
1
CFM @ 2-In. Orifice
115 cfm
Mounting Brackets
Metal
Motor Enclosure Design
Open
Motor Mounting Type
Lug
Max. Amps
8.2 A
Footnotes
3, 4, 6, 8
Motor Efficiency Group
Standard Efficient
Replacement Brushes
34DA21
Max. Air Watts
215 W
Motor Mounting Position
All Angle
No. of Speeds
1
Ins. Class
B
Duty
Intermittent
Phase
Single
Average Life
500 hr
Hz
60 Hz
Ambient Temperature
40 Degrees C
Bearings
Ball
Item
Vacuum Motor
Motor Design
Universal AC/DC
Motor/Blower Type
Thru-Flow
Standards
UL Recognized for US and Canada (E47479)
Motor Thermal Protection
Auto
Vacuum (H2O Sealed)
60.0
Vacuum Rating
60
Mounting Bracket Material
Thermoset
Duty Cycle
Intermittent
Motor Bearings
Ball
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Usable @ 208V
Not Usable at 208V

Description

Vacuum Motor, Single Phase, Motor Design Universal AC/DC, No. of Speeds 1, 120V AC Voltage, Motor/Blower Type Thru-Flow, Max. Amps 8.2 A, 60 Hz Hz, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 215 W, Vacuum Rating 60, CFM @ 2-In. Orifice 115 cfm, Mounting Bracket Material Thermoset, Motor Bearings Ball, Blower Stages 1
