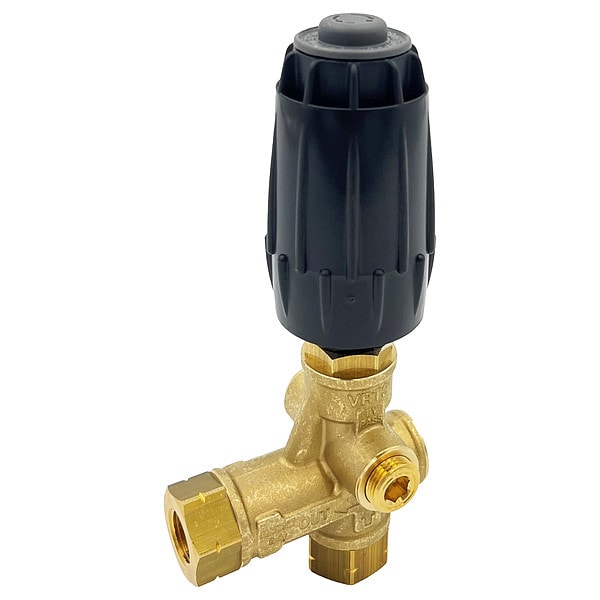

Dayton Valve, Regulating, 0-12 GPM 1MDA4 - main

Valve, Regulating, 0-12 GPM

  • Mfr # 1MDA4

  • Zoro # G2108267

product price: $82.79
/ea
Free Shipping & Returns

Key Features

For Use With
Plunger Pumps
Flow Range (GPM)
0 to 10.5
Application
Water and Nonflammable Liquids
Inlet Port (In.)
3/8 F
Body Material
Brass
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1MDA4
Zoro #
G2108267
UPC #
190735146569
Country of Origin
Italy

Dimensions

Height (In.)
6 3/4 in
Overall Height
6 3/4 in
Overall Length
3 1/4 in
Inlet Connection Size
3/8 in
Outlet Connection Size
3/8 in

Details

Item
Valve
For Use With
Plunger Pumps
Flow Range (GPM)
0 to 10.5
Application
Water and Nonflammable Liquids
Inlet Port (In.)
3/8 F
Body Material
Brass
Max. Pressure (PSI)
4,500 psi
Bypass Port (In.)
(2) 3/8 F
Type
Regulating
Max. Fluid Temp. (F)
190 Degrees F
Outlet Port (In.)
3/8 F
Wetted Materials
Brass, Buna-N, Stainless Steel, Steel
Inlet Connection Type
BSPP
For Media
Non-Flammable Liquids, Water
Test Lever
Test Lever Not Included
Operating Temperature - Maximum
190 Degrees F
Outlet Connection Gender
Female
Operating Pressure - Maximum
4,500 psi
Inlet Connection Gender
Female
Operating Pressure - Minimum
1,000 psi
Operating Temperature - Minimum
41 Degrees F
Outlet Connection Type
BSPP

Description

Valve, Body Material Brass, Factory Set Pressure Not Applicable, Not Applicable BtuH, Overall Height 6 3/4 in, Overall Length 3 1/4 in, Test Lever Test Lever Not Included, Standards Not Applicable
