  11. Washdown Motor, 3 Ph, TEFC, 10 HP, 1760 rpm
This item is Discontinued.

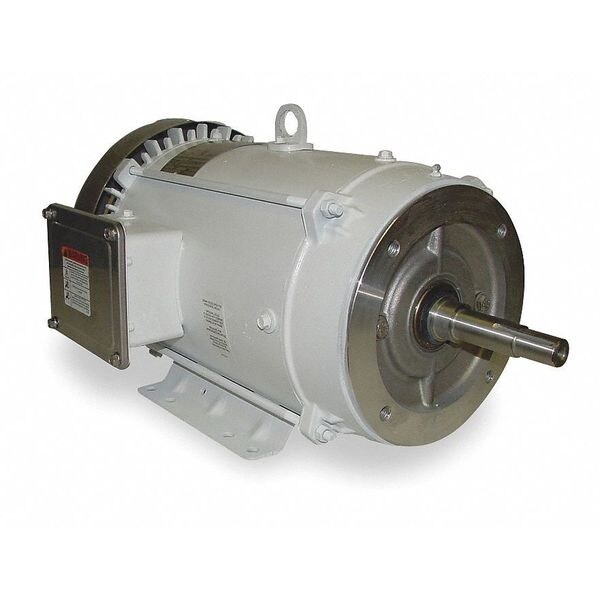

Dayton Washdown Motor, 3 Ph, TEFC, 10 HP, 1760 rpm 140787.00

Washdown Motor, 3 Ph, TEFC, 10 HP, 1760 rpm (Discontinued)

  • Mfr # 140787.00
  • Zoro # G3186556
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
140787.00
Zoro #
G3186556
UPC #
190735222201
Country of Origin
Unknown

Dimensions

Shaft Length
4 1/4 in
Overall Length
19 1/2 in
Length Less Shaft
15 1/4 in
Shaft Dia.
7/8 in
Body Dia.
9.63 in
Bolt Circle Dia.
7 1/4 in

Details

Item
Washdown Close Coupled Pump Motor
Motor Design
3-Phase
Phase
Three
HP
10
RPM Range
1,701-1,800
Voltage
208-230/460V AC
Frame
215JM
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Service Factor
1.15
Nameplate RPM
1,760
Motor Bearings
Ball
Motor Shaft Rotation
CCW, CW
Standards
BISSC, CE, CSA, UL
Frame Material
Epoxy Coated
Motor Application
Washdown
NEMA Design
B
Max. Ambient Temp.
40 Degrees C
Conduit Box
Cast Aluminum with Buna-N Gasketed Cover
Ins. Class
F
Nominal Efficiency
89.5 %
Endshields
Cast Aluminum
Motor Shaft Design
Threaded
Duty
Continuous
Hz
60 Hz
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Application
Used in Close Coupled Pump Applications
Shaft Material
Stainless Steel
Motor Mounting Type
Face/Base
Full Load Amps
29.0-28.0/14.0 A
Motor Mounting Position
All Angle
Drain Plugs
(4) Shaft End, (3) Lead End, (2) In Conduit Box
Usable @ 208V
Yes
Mounting Stud Pattern
8 1/4 in x 9 3/4 in
Usable @ 200V
No
No. of Speeds
1
Motor Sub Application
Crop Dryer
Endshield Material
Cast Aluminum
Duty Cycle
Continuous

Description

Washdown Close Coupled Pump Motor, Three Phase, Motor Design 3-Phase, 10 HP, Nameplate RPM 1,760, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 29.0-28.0/14.0 A, 215JM Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CCW, CW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base
