  6. Washdown Motor, 3 Ph, TEFC, 10 HP, 1760 rpm

This item is Discontinued.

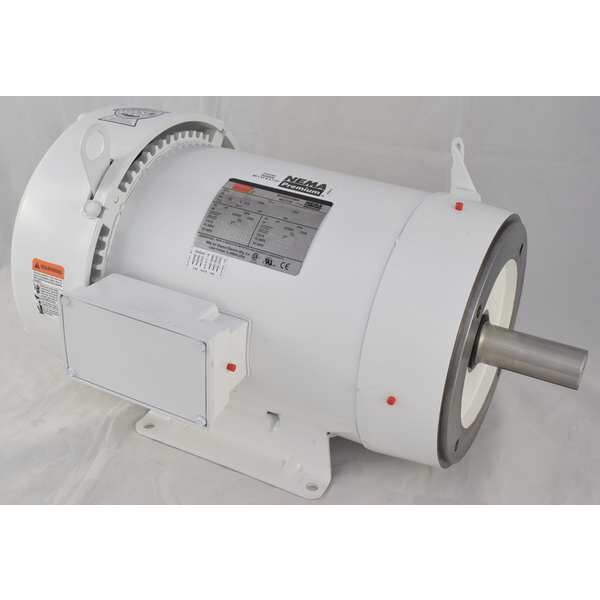

Dayton Washdown Motor, 3 Ph, TEFC, 10 HP, 1760 rpm 5XAV1BG

Washdown Motor, 3 Ph, TEFC, 10 HP, 1760 rpm (Discontinued)

  • Mfr # 5XAV1BG
  • Zoro # G2116012
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5XAV1BG
Zoro #
G2116012
UPC #
190735355633
Country of Origin
Mexico

Dimensions

Body Dia.
10.75 in
Shaft Length
3 1/8 in
Length Less Shaft
17 1/4 in
Shaft Dia.
1 3/8 in
Overall Length
20 3/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
10 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
215TC
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Endshields
Cast Aluminum
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Motor Service Factor
1.15
Conduit Box
Cast Aluminum with Buna-N Gasketed Cover
Shaft Material
303
Drain Plugs
(2) in Conduit Box, (4) Lead End, (4) Shaft End
Motor Bearings
Ball
CC Number
CC030A
Hz
60/50 Hz
Motor Mounting Type
C-Face
Nominal Efficiency
91.7 %
Motor Mounting Position
Horizontal
Motor Application
General Purpose
Footnotes
3, 12, 51
Nameplate RPM
1,760 RPM
NEMA Design
B
Frame Material
Epoxy Coated
Ins. Class
F
Standards
CSA Certified (258525), UL Recognized (E47479), USDA Approved
Inverter Rated
Inverter Rated
Full Load Amps
24.0/12.0 A
Motor Shaft Design
Keyed
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Endshield Material
Aluminum
Duty Cycle
Continuous
Finish
Epoxy-Coated
Voltage @ 50Hz
190/380V AC

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 1,760 RPM, Voltage 230/460V AC, Full Load Amps 24.0/12.0 A, 215TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Motor Frame Material Steel
