  11. Washdown Motor, TEFC, 2 HP, 1740 rpm, 145TC

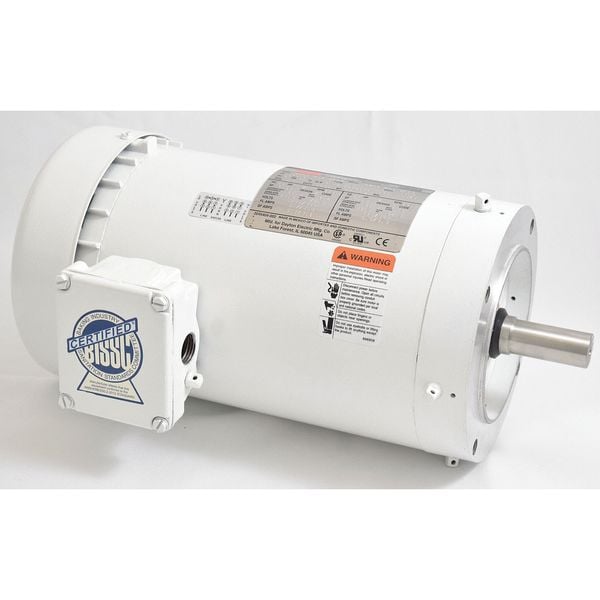

Dayton Washdown Motor, TEFC, 2 HP, 1740 rpm, 145TC 48ZJ96 - main

Washdown Motor, TEFC, 2 HP, 1740 rpm, 145TC

  • Mfr # 48ZJ96

  • Zoro # G1455218

product price: $1,183.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
48ZJ96
Zoro #
G1455218
UPC #
190735905272
Country of Origin
Mexico

Dimensions

Overall Length
13 1/4 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Body Dia.
6.63 in
Length Less Shaft
11 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
145TC
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Drain Plugs
(2) in Conduit Box
Application
Washguard
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Shaft Rotation
CW/CCW
NEMA Design
B
Motor Mounting Position
Horizontal
Standards
CSA (258525), UL (E47479)
Endshields
Cast Aluminum
CC Number
CC030A
Motor Bearings
Ball
Full Load Amps
6.0/2.8 A
Shaft Material
Stainless Steel
Motor Application
General Purpose
Includes
Shaft Key
Motor Service Factor
1.15
Nameplate RPM
1,750 RPM
Max. Ambient Temp.
40 Degrees C
Motor Shaft Design
Keyed
Hz
60/50 Hz
Motor Mounting Type
C-Face
Duty
Continuous
Conduit Box
Oversize Cast Aluminum with Nitrile Gasket
Nominal Efficiency
85.5 %
Inverter Rated
Not Inverter Rated
Endshield Material
Aluminum
Duty Cycle
Continuous
Finish
Epoxy-Coated
Voltage @ 50Hz
190/380V AC

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,750 RPM, Voltage 230/460V AC, Full Load Amps 6.0/2.8 A, 145TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Inverter Rating Not Applicable, Motor Frame Material Steel
