  11. Washdown Mtr, 3 Ph, TEFC, 1-1/2 HP, 1740 rpm
This item is Discontinued.

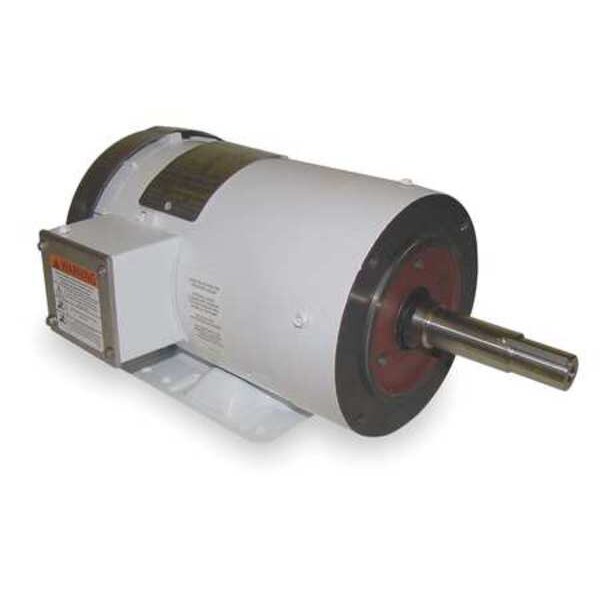

Dayton Washdown Mtr, 3 Ph, TEFC, 1-1/2 HP, 1740 rpm 2LHK4

Washdown Mtr, 3 Ph, TEFC, 1-1/2 HP, 1740 rpm (Discontinued)

  • Mfr # 2LHK4
  • Zoro # G1476307
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2LHK4
Zoro #
G1476307
UPC #
190735222188
Country of Origin
United States

Dimensions

Body Dia.
6-1/2"
Length Less Shaft
11"
Shaft Dia.
7/8"
Overall Length
16"
Shaft Length
4-1/4"

Details

Item
Washdown Close Coupled Pump Motor
Motor Design
3-Phase
Phase
3
HP
1-1/2
RPM Range
1701-1800
Voltage
208-230/460
Frame
143JM
Motor Frame Material
Epoxy Coated Rolled Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1740
Motor Service Factor
1.15
NEMA Design
B
Motor Shaft Rotation
CW/CCW
Motor Shaft Design
JM Threaded
Ins. Class
F
Drain Plugs
(4) Each End, (2) In Conduit Box
Frame Material
Epoxy Coated
Application
Used in Close Coupled Pump Applications
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460
Hz
60
Motor Application
Washdown
Shaft Material
303 Stainless Steel
Nominal Efficiency
84.0%
Standards
UL Recognized (E47479), CSA Certified (LR225293), USDA Approved
Motor Mounting Type
Face/Base
Motor Mounting Position
All Angle
Motor Bearings
Ball
Endshields
Cast Aluminum
Conduit Box
Cast Aluminum with Buna-N Gasketed Cover
Full Load Amps
4.5-4.4/2.2

Description

Washdown Close Coupled Pump Motor, 3-Phase, 1-1/2 HP, 1740 Nameplate RPM, Voltage 208-230/460, Phase 3, 143JM Frame, Totally Enclosed Fan-Cooled, Full Load Amps 4.5-4.4/2.2, 60 Hz, All Angle Motor Mounting Position, Motor Thermal Protection None, F Ins. Class, Motor Service Factor 1.15, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 16 In., Shaft Dia. 7/8 In., Shaft Length 4-1/4 In., Body Dia. 6-1/2 In., Length Less Shaft 11 In., Continuous Duty
