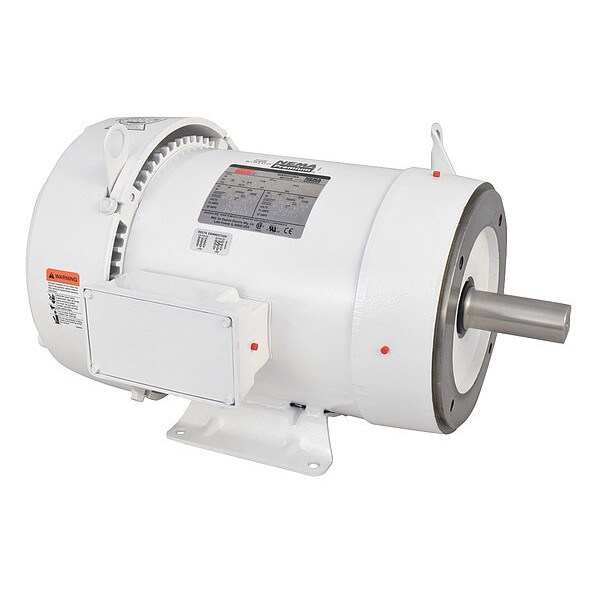

Washdown Mtr, 3 Ph, TEFC, 7-1/2 HP, 1765 rpm

DAYTON| Zoro #: G1938833| Mfr #: 5XAV0BH

$1399.68 /ea

This item ships free. Details.Standard ground shipping.
Details:
Standards: UL Recognized (E47479), CSA Certified (258525), USDA Approved
RPM Range: 1701-1800
Overall Length: 18-3/4"
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1938833 Mfr #: 5XAV0BH
Standards: UL Recognized (E47479), CSA Certified (258525), USDA ApprovedRPM Range: 1701-1800
Overall Length: 18-3/4"Body Dia.: 9-5/8"
HP: 7-1/2Shaft Length: 3-1/8"
NEMA Design: BNominal Efficiency: 91.7%
Conduit Box: Cast Aluminum with Buna-N Gasketed CoverIns. Class: F
Max. Ambient Temp.: 40 Degrees CInverter Rated: Yes
Voltage Compatibility: 460, 230/460, 220-230/460Frame Material: Epoxy Coated
Duty: ContinuousLength Less Shaft: 16-1/4"
Motor Service Factor: 1.15Phase: 3
Footnotes: 8, 11Motor Shaft Rotation: CW/CCW
Endshields: Cast AluminumItem: Washdown Motor
Frame: 213TCNameplate RPM: 1765
Motor Bearings: BallShaft Dia.: 1-3/8"
Motor Design: 3-PhaseMotor Mounting Type: Face/Base
Motor Mounting Position: All AngleMotor Application: Washdown
Motor Shaft Design: KeyedVoltage: 230/460
Full Load Amps: 18.2/9.1Application: High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Shaft Material: 303 Stainless SteelMotor Thermal Protection: None
Motor Enclosure Design: Totally Enclosed Fan-CooledHz: 60/50
Country of Origin (subject to change): Mexico

Description

Washdown Motor, 3-Phase, 7-1/2 HP, 1765 Nameplate RPM, Voltage 230/460, Phase 3, 213TC Frame, Totally Enclosed Fan-Cooled, Full Load Amps 21.6/10.8, 60/50 Hz, Thermal Protection None, F Insulation Class, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 18-3/4 In., Shaft Dia. 1-3/8 In., Shaft Length 3-3/8 In., Body Dia. 9-5/8 In., Length Less Shaft 15-5/16 In., Continuous Duty, Frame Material Epoxy Coated
