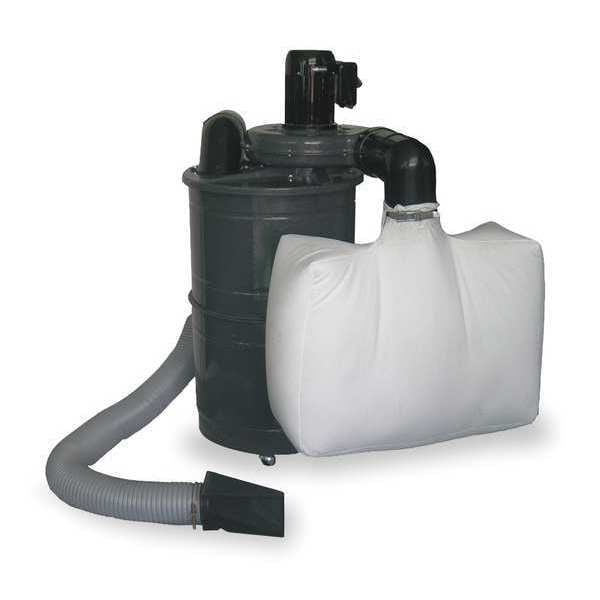

Wood Dust Collector, 1,310 cfm CFM Max Flow, 2 hp, Three Phase

Mfr # 3AA21
Zoro # G0969026

694.99

Free Shipping & Returns

Key Features

Max. Flow (CFM)

1,310 cfm

Operating Velocity Range (FPM)

6,900 fpm

Static Pressure Range (In.)

1.64 to 9

2 hp

Phase

Three

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 3AA21
Zoro #: G0969026
UPC #: 190735278666
Country of Origin: China

Dimensions

Drum Dia. (In.): 22 A, 24
Hose Dia. (In.): 6 in
Overall Length: 42 in
Overall Height: 53 1/2 in
Overall Width: 39 in
Main Inlet Diameter: 6 in
Wire Rope Length: 42 in
Length: 42 in

Details

Item: Wood Dust Collector
Max. Flow (CFM): 1,310 cfm
Operating Velocity Range (FPM): 6,900 fpm
Static Pressure Range (In.): 1.64 to 9
HP: 2 hp
Phase: Three
Amps AC: 5.2 A
dBA: 83 dBA
Voltage: 230/460V AC
Type: Two Stage Portable, 3-Phase
Hz: 60 Hz
Filter Bag: 5 micron
Includes: 5 ft Wire-Reinforced PVC Inlet Hose and Clamps, 5 micron Dust Collector Bag, 8 ft Power Cord
Velocity - Maximum: 6,900 fpm
Lower Collector Included: N
Dust Collector Type: Two-Stage
Lower Collector Type: Drum
Static Pressure - Maximum: 9 in
Sound Rating - Maximum: 83 dBA
Frequency: 60 Hz
Air Flow - Maximum: 1,310 cfm
Amperage: 5.2 A
Nameplate Voltage: 230/460V AC

Description

Wood Dust Collector, Gas Heater Mounting Type Portable, Dust Collector Type Two-Stage, Filter Type Bag, Nameplate Voltage 230/460V AC, Air Flow - Maximum 1,310 cfm, Main Inlet Diameter 6 in, Number of Adaptor Inlets Not Applicable, Adaptor Inlet Diameter Not Applicable, Lower Collector Type Drum, Lower Collector Capacity Not Applicable, Sound Rating - Maximum 83 dBA, Amperage 5.2 A, Frequency 60 Hz, HP 2 hp

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
