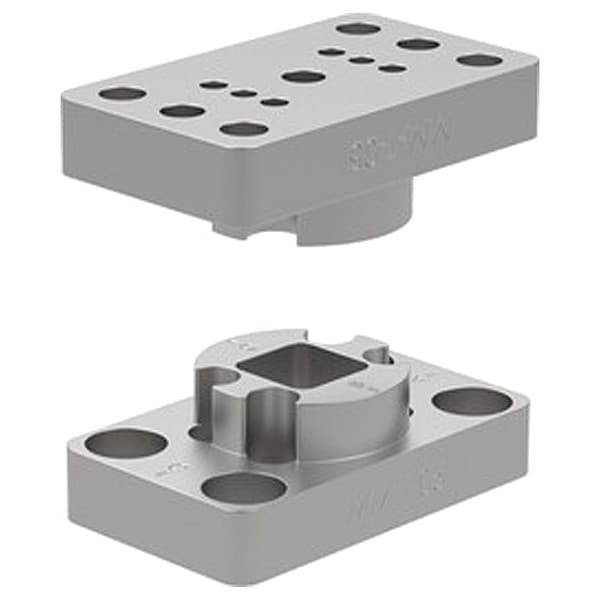

Array Tool Plate for MM-15 TE-25 Series
- Mfr # MM-T-05
- Zoro # G710474389
product price:Â
$
138.99
/ea
Free Shipping & Returns
Key Features
Overall Width
50 mm
Overall Height
16 mm
Body Material
Aluminum
Includes
(2) 3 mm Dia x 6 mm 316 Stainless Dowel Pin, (2) 5 mm Dia x 8 mm 316 Stainless Dowel Pin, (4) M3 x 10 mm SHCS Stainless Patchlock, (4) M5 x 8 mm SHCS Stainless Patchlock, 2.5 mm Hex Allen Wrench, 3 & 5 mm DC Rectangle Tool Plate, 4 mm Hex Allen Wrench, Multi-Mount
Includes Mounting Hardware
Yes
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MM-T-05
- Zoro #
- G710474389
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Width
- 50 mm
- Overall Height
- 16 mm
- Mount Hole Center to Center Width
- 19.05 mm
- Mount Hole Center to Center Length
- 38.1 mm
- Overall Length (In.)
- 30 mm
Details
- Body Material
- Aluminum
- Includes
- (2) 3 mm Dia x 6 mm 316 Stainless Dowel Pin, (2) 5 mm Dia x 8 mm 316 Stainless Dowel Pin, (4) M3 x 10 mm SHCS Stainless Patchlock, (4) M5 x 8 mm SHCS Stainless Patchlock, 2.5 mm Hex Allen Wrench, 3 & 5 mm DC Rectangle Tool Plate, 4 mm Hex Allen Wrench, Multi-Mount
- Item
- Array Tool Plate
- Includes Mounting Hardware
- Yes
- Center of Gravity Z
- -11.1 mm
- ISO Mount Pattern
- ISO 50
- Center of Gravity X
- 0 mm
- Center of Gravity Y
- 0 mm
- Compatible Manufacturer Model Number
- MM-15xx, TE-25xxx
- System of Measurement
- Metric
- Weight Capacity
- 22.0462 lb
- Compatible Product Type
- End Effectors
- Compatible Series
- MM-15, TE-25
- Product Type
- Multi-Mount Tool Array Kit
Description
MULTIMOUNT 3/5mm DC TOOL PLATE KIT
