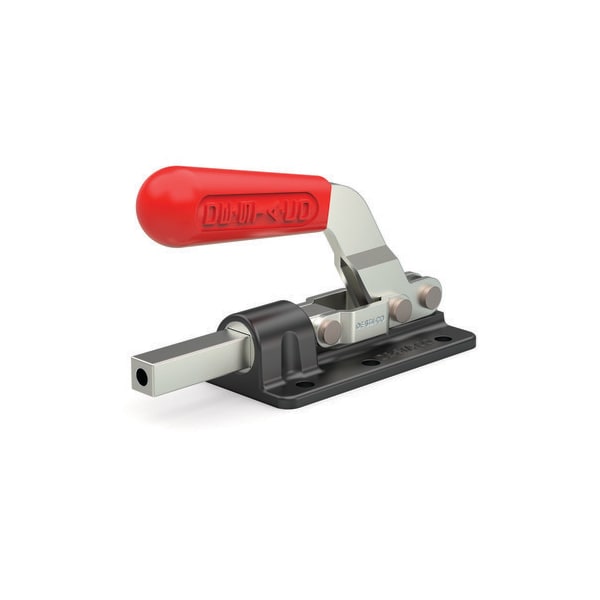

Clamp Straight-Line Action 607-Sq
- Mfr # 607-SQ
- Zoro # G3129841
product price:Â
$
94.89
/ea
Key Features
Application
Metalworking, Welding, Assembly And Light Machining Fixture
Overall Width
2.2 in
Overall Length
6.02 in
Holding Capacity - Maximum
800 lbf
Includes Spindle
No
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 607-SQ
- Zoro #
- G3129841
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Width
- 2.2 in
- Overall Length
- 6.02 in
- Plunger Height
- 0.69 in
- Tip Diameter
- 1/2 in
- Spindle Thread Size
- 5/16-18
- Fastener Thread Size
- 1/4 in
- Overall Depth
- 3.52 in
- Arm Length
- 1.76 in
- Height Under Arm
- 0.69 in
- Wire Rope Length
- 6.02 in
- Length
- 6.02 in
Description
Clamp Straight-Line Action 607-Sq, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 800 lbf, Plunger Travel 1.63 in, Plunger Height 0.69 in, Plunger Thread 5/16-18, Includes Spindle No, Application Metalworking, Welding, Assembly And Light Machining Fixture, Locking Position Extended, Retracted, Accommodates Workpiece Variation No, Arm Length 1.76 in, Body Material Steel, Clamping Force 800 lb
