GHB-1340A LATHE W/TAK-13GH/BD
- Mfr # 225-URSS
- Zoro # G1897299
product price:Â
$
74.69
/ea
Key Features
Features
Clamp Supplied with Neoprene Spindle, Low profile, With Toggle Lock Plus
Includes
Flanged Washers, Spindle Assembly
Overall Height
1.8900"
Application
Assembly, Checking Fixtures, Closures, Food Processing, Welding, Wood Working
Distance Between Mount Holes
1.0000"
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 225-URSS
- Zoro #
- G1897299
- UPC #
- -
- Country of Origin
- United States
- Features
- Clamp Supplied with Neoprene Spindle, Low profile, With Toggle Lock Plus
- Includes
- Flanged Washers, Spindle Assembly
- Item
- Hold-Down Clamp
- Application
- Assembly, Checking Fixtures, Closures, Food Processing, Welding, Wood Working
- Distance Between Mount Holes
- 1.0000"
- Bar Type
- U-Bar
- Base Type
- Flange
- Clamping Orientation
- Horizonal
- Base Material
- Stainless Steel
- Holding Capacity
- 500 lb
- Handle Movement Angle
- 70 Degrees
- Bar Opening Angle
- 92 Degrees
- Mounting Holes Center to Center - Short Side
- 0.88 in
- Tip Material
- Stainless Steel
- Base Mounting Style
- Flange
- Arm Style
- U-Bar
- Mounting Holes Center to Center - Long Side
- 1 in
- Holding Capacity - Maximum
- 500 lbf
- Clamp Arm Opening Angle
- 92 Degrees
- Includes Locking Handle
- Yes
- Body Material
- Stainless Steel
- Accommodates Workpiece Variation
- No
- Handle Orientation
- Horizontal
Description

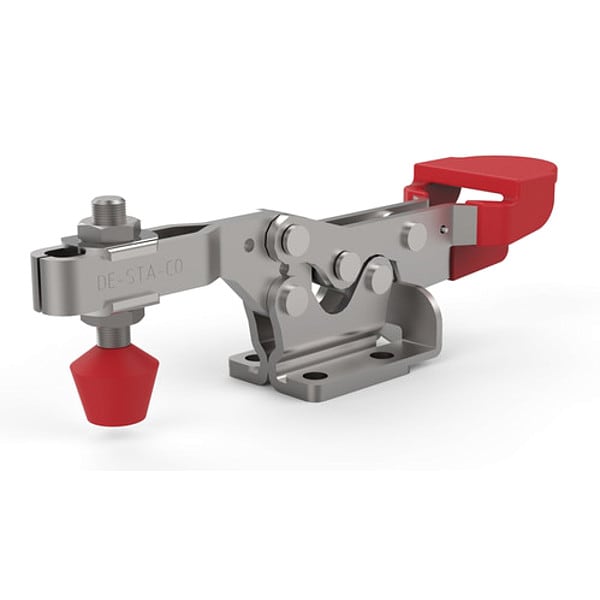

Hold-Down Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Holding Capacity - Maximum 500 lbf, Arm Style U-Bar, Tip Material Stainless Steel, Clamp Arm Opening Angle 92 Degrees , Arm Length 2.69 in, Height Under Arm 1.29 in, Includes Locking Handle Yes, Accommodates Workpiece Variation No, Application Assembly, Checking Fixtures, Closures, Food Processing, Welding, Wood Working, Body Material Stainless Steel, Includes Flanged Washers, Spindle Assembly
