Shop DE-STA-CO

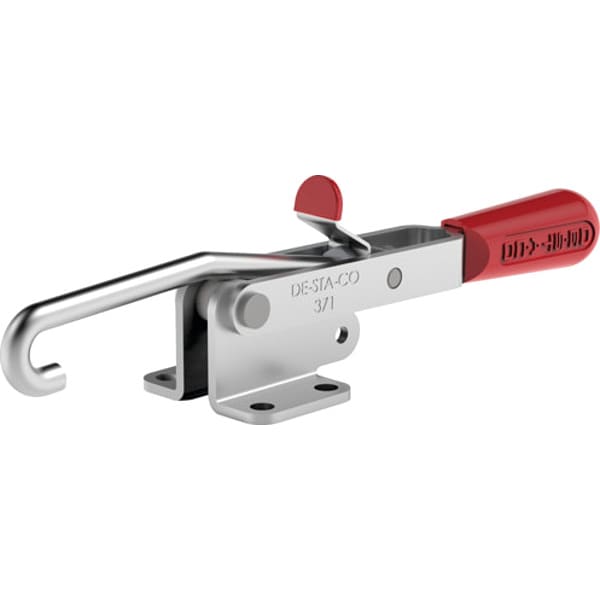

Latch Clamp, J-Hook, 750 Lbs, 2.58 In

  • Mfr # 371
  • Zoro # G1184267
product price:
$
50.55
/ea

Key Features

Type
J-Hook
Holding Capacity (Lb.)
750
Overall Height (In.)
2.58 in
Body Material
Steel
Overall Length (In.)
11.89 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
371
Zoro #
G1184267
UPC #
-
Country of Origin
Germany
Item
Latch Clamp
Type
J-Hook
Holding Capacity (Lb.)
750
Body Material
Steel
Latch
Centerline 1.42 in
Includes
Ergonomic Grip
Adjustable Range
0-0.81
Base Mounting Centers (In.)
1.25 x 1.94
Arm
J Hook
Application
Clamping, Latching
Drawing Movement With Thumb Control
4.18 in
Mounting Holes Center to Center - Short Side
1.25 in
Handle Orientation
Horizontal
Holding Capacity - Maximum
750 lbf
Mounting Holes Center to Center - Long Side
1.94 in
Exerted Force : Applied Force - Pulling
36:1
Base Mounting Style
Flange
Includes Latch Plate
No
Hook Type
J
Exerted Force : Applied Force - Pushing
36:1
Requires Articulation
Yes
Includes Locking Handle
No
Hook Adjustment - Maximum
0.94 in
Drawing Movement Without Thumb Control
5.38 in

Dimensions

Overall Height (In.)
2.58 in
Overall Length (In.)
11.89 in
Dia. (In.)
0.34 in
Overall Depth
2.58 in
Overall Length
11.89 in
Overall Width
2.63 in
Wire Rope Length
11.89 in
Length
11.89 in

Description

Latch Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 750 lbf, Hook Adjustment - Maximum 0.94 in, Drawing Movement Without Thumb Control 5.38 in, Includes Latch Plate No, Requires Articulation Yes, Hook Type J, Application Clamping, Latching, Body Material Steel, Drawing Movement With Thumb Control 4.18 in, Exerted Force : Applied Force - Pulling 36:1, Exerted Force : Applied Force - Pushing 36:1, Includes Ergonomic Grip
