  11. Latch Clamp, U-Bolt, 4000 Lbs, 4.19 In

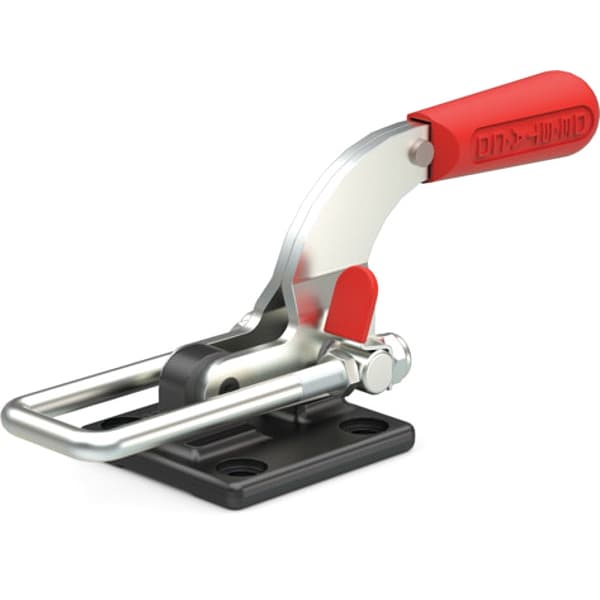

De-Sta-Co Latch Clamp, U-Bolt, 4000 Lbs, 4.19 In 375 - main

Latch Clamp, U-Bolt, 4000 Lbs, 4.19 In

  • Mfr # 375

  • Zoro # G1651641

product price: $88.49
/ea
Free Shipping & Returns

Key Features

Type
U-Bolt
Holding Capacity (Lb.)
4,000
Overall Height (In.)
4.19 in
Body Material
Steel
Overall Length (In.)
10.19 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
375
Zoro #
G1651641
UPC #
-
Country of Origin
United States

Dimensions

Overall Height (In.)
4.19 in
Overall Length (In.)
10.19 in
Dia. (In.)
0.41 in
Overall Depth
4.19 in
Overall Width
3.13 in
Overall Length
10.19 in

Details

Item
Latch Clamp
Type
U-Bolt
Holding Capacity (Lb.)
4,000
Body Material
Steel
Latch
Centerline 1.13 in
Arm
U Bolt
Includes
Ergonomic Grip, Latch Plate 385102 is Not Included Must be Ordered Through Grainger Sourcing
Base Mounting Centers (In.)
2.25 x 2.25
Adjustable Range
0-0.69
Application
Clamping, Latching
Exerted Force : Applied Force - Pulling
44:1
Handle Orientation
Horizontal
Exerted Force : Applied Force - Pushing
44:1
Mounting Holes Center to Center - Short Side
2.25 in
Drawing Movement Without Thumb Control
3.5 in
Requires Articulation
Yes
Hook Adjustment - Maximum
0.81 in
Base Mounting Style
Flange
Includes Latch Plate
No
Mounting Holes Center to Center - Long Side
2.25 in
Recommended Latch Plate Manufacturer Model Number
375509/385102
Hook Type
Horizontal U
Includes Locking Handle
No
Holding Capacity - Maximum
4,000 lbf

Description

Latch Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 4,000 lbf, Hook Adjustment - Maximum 0.81 in, Drawing Movement Without Thumb Control 3.5 in, Includes Latch Plate No, Requires Articulation Yes, Hook Type Horizontal U, Application Clamping, Latching, Body Material Steel, Exerted Force : Applied Force - Pulling 44:1, Exerted Force : Applied Force - Pushing 44:1
