  11. Latch Clamp, U-Bolt, w/Lever, 4000 Lbs, 4.19
Shop All Toggle & Latch Clamps
De-Sta-Co

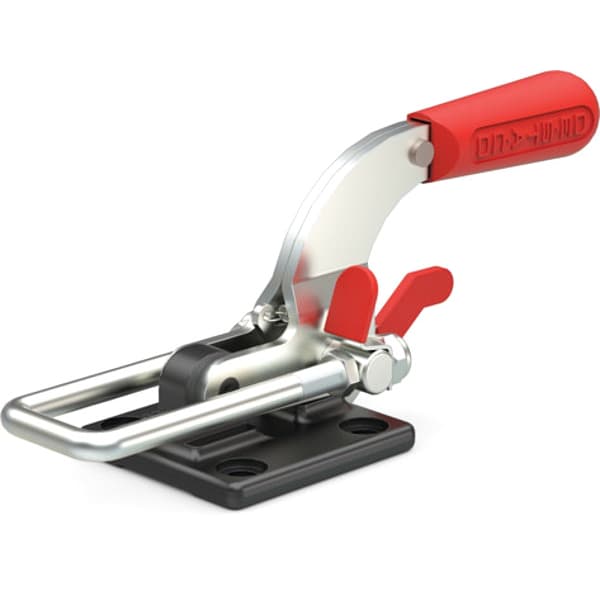

Latch Clamp, U-Bolt, w/Lever, 4000 Lbs, 4.19

product price: $118.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type U-Bolt
  • Holding Capacity (Lb.) 4,000
  • Overall Height (In.) 4.19 in
  • Body Material Steel
  • Latch Centerline 1.13 in
See all product information

Product Information

Dimensions

Overall Height (In.) 4.19 in
Overall Length (In.) 10.19 in
Dia. (In.) 0.41 in
Overall Width 3.13 in
Overall Depth 4.19 in
Overall Length 10.19 in

Details

Item Latch Clamp
Type U-Bolt
Holding Capacity (Lb.) 4,000
Body Material Steel
Latch Centerline 1.13 in
Base Mounting Centers (In.) 2.25 x 2.25
Arm U Bolt
Adjustable Range 0-0.69
Includes Ergonomic Grip, Latch Plate 385102 is Not Included Must be Ordered Through Grainger Sourcing
Application Clamping, Latching
Hook Adjustment - Maximum 0.81 in
Holding Capacity - Maximum 4,000 lbf
Exerted Force : Applied Force - Pulling 44:1
Hook Type Horizontal U
Base Mounting Style Flange
Requires Articulation Yes
Mounting Holes Center to Center - Long Side 2.25 in
Includes Locking Handle Yes
Handle Orientation Horizontal
Exerted Force : Applied Force - Pushing 44:1
Drawing Movement Without Thumb Control 3.5 in
Includes Latch Plate No
Recommended Latch Plate Manufacturer Model Number 375509/385102
Mounting Holes Center to Center - Short Side 2.25 in

Description

Latch Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle Yes, Holding Capacity - Maximum 4,000 lbf, Hook Adjustment - Maximum 0.81 in, Drawing Movement Without Thumb Control 3.5 in, Includes Latch Plate No, Requires Articulation Yes, Hook Type Horizontal U, Application Clamping, Latching, Body Material Steel, Exerted Force : Applied Force - Pulling 44:1, Exerted Force : Applied Force - Pushing 44:1
