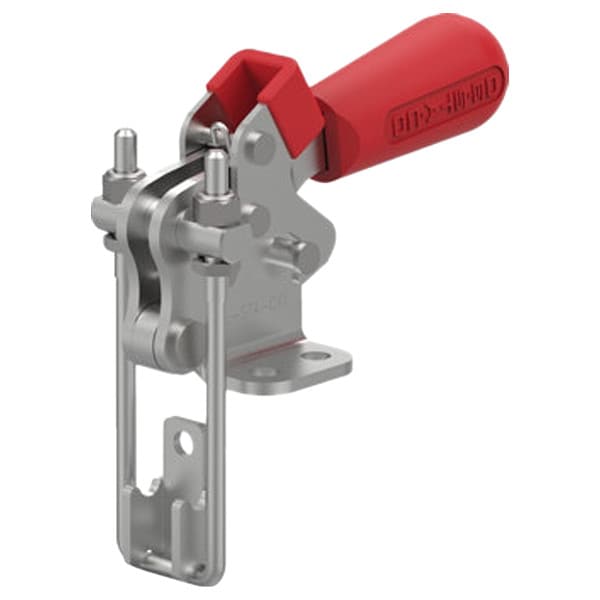

Locking Latch Clamp, 3.47 in L, 0.44 in W
- Mfr # 324-RSS
- Zoro # G610947396
product price:Â
$
95.79
/ea
Key Features
Body Material
Stainless Steel
Includes
Latch Plate, Lock Nuts, Threaded U-Hooks, Thumb Tab Lever, Toggle Lock Plus
Application
Access Covers, Containers, Doors, Drums, Lids, Molds, Vessels
Handle Orientation
Horizontal
Reflectivity
Reflective
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 324-RSS
- Zoro #
- G610947396
- UPC #
- -
- Country of Origin
- Thailand
- Item
- Latch Clamp
- Body Material
- Stainless Steel
- Includes
- Latch Plate, Lock Nuts, Threaded U-Hooks, Thumb Tab Lever, Toggle Lock Plus
- Application
- Access Covers, Containers, Doors, Drums, Lids, Molds, Vessels
- Handle Orientation
- Horizontal
- Reflectivity
- Reflective
- Hook Type
- Vertical U
- Base Mounting Style
- Flange
- Mounting Holes Center to Center - Short Side
- 0.5 in
- Hook Adjustment - Maximum
- 0.47 in
- Includes Latch Plate
- Yes
- Handle Material
- Stainless Steel
- Drawing Movement Without Thumb Control
- 1.53 in
- Mounting Holes Center to Center - Long Side
- 0.88 in
- Includes Locking Handle
- Yes
- Exerted Force : Applied Force - Pulling
- 31:1
- Drawing Movement With Thumb Control
- 1.53 in
- Holding Capacity - Maximum
- 500 lbf
- Handle Color
- Red
- Requires Articulation
- Yes
- Recommended Latch Plate Manufacturer Model Number
- 324901
Description
Latch Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle Yes, Holding Capacity - Maximum 500 lbf, Hook Adjustment - Maximum 0.47 in, Drawing Movement Without Thumb Control 1.53 in, Includes Latch Plate Yes, Requires Articulation Yes, Hook Type Vertical U, Application Access Covers, Containers, Doors, Drums, Lids, Molds, Vessels, Arm Length 2.62 in, Body Material Stainless Steel, Drawing Movement With Thumb Control 1.53 in
