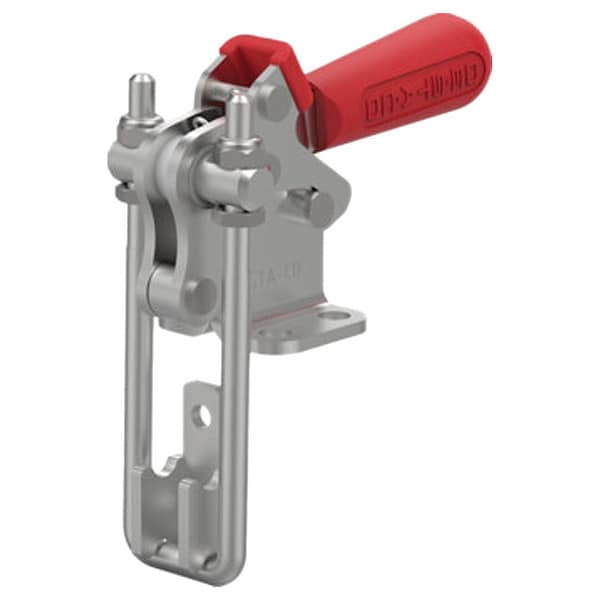

Locking Latch Clamp, 4.12 in L, 1.63 in W
Mfr # 334-RSS
Zoro # G810947394
product price:Â
$
109.99
/ea
Free Shipping & Returns
Key Features
Body Material
Stainless Steel
Includes
Latch Plate, Lock Nuts, Threaded U-Hooks, Thumb Tab Lever, Toggle Lock Plus
Application
Access Covers, Containers, Doors, Drums, Lids, Molds, Vessels
Overall Depth
4.77 in
Includes Locking Handle
Yes
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 334-RSS
- Zoro #
- G810947394
- UPC #
- -
- Country of Origin
- Thailand
- Item
- Latch Clamp
- Body Material
- Stainless Steel
- Includes
- Latch Plate, Lock Nuts, Threaded U-Hooks, Thumb Tab Lever, Toggle Lock Plus
- Application
- Access Covers, Containers, Doors, Drums, Lids, Molds, Vessels
- Includes Locking Handle
- Yes
- Requires Articulation
- Yes
- Exerted Force : Applied Force - Pulling
- 31:1
- Drawing Movement Without Thumb Control
- 2.04 in
- Reflectivity
- Reflective
- Holding Capacity - Maximum
- 1,000 lbf
- Handle Material
- Stainless Steel
- Handle Color
- Red
- Hook Adjustment - Maximum
- 0.76 in
- Drawing Movement With Thumb Control
- 2.04 in
- Base Mounting Style
- Flange
- Includes Latch Plate
- Yes
- Mounting Holes Center to Center - Short Side
- 0.75 in
- Recommended Latch Plate Manufacturer Model Number
- 334901
- Mounting Holes Center to Center - Long Side
- 1 in
- Handle Orientation
- Horizontal
- Hook Type
- Vertical U
Description
Latch Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle Yes, Holding Capacity - Maximum 1,000 lbf, Hook Adjustment - Maximum 0.76 in, Drawing Movement Without Thumb Control 2.04 in, Includes Latch Plate Yes, Requires Articulation Yes, Hook Type Vertical U, Application Access Covers, Containers, Doors, Drums, Lids, Molds, Vessels, Arm Length 3.76 in, Body Material Stainless Steel, Drawing Movement With Thumb Control 2.04 in
