Shop DE-STA-CO

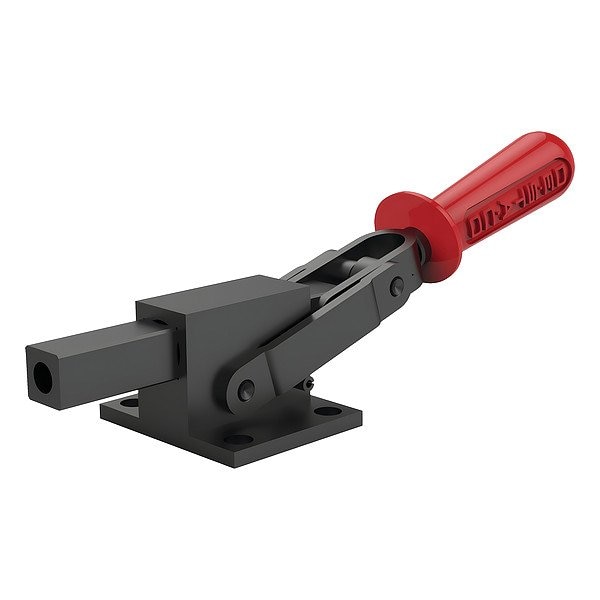

Manual Toggle Clamp, Flange

  • Mfr # 5150-M

  • Zoro # G022916942

product price:
$
114.99
/ea
Free Shipping & Returns

Key Features

Tip Material
Steel
Includes Mounting Nut
No
Arm Length
11.23 in
Includes
Black oxide finish with hardened plungers, Hardened steel pivot pins and bushings, Square plunger
Plunger Travel1
1.91 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5150-M
Zoro #
G022916942
UPC #
697437979674
Country of Origin
Thailand

Dimensions

Arm Length
11.23 in
Overall Depth
3.63 in
Overall Width
2.99 in
Spindle Thread Size
M12
Wire Rope Length
11.23 in
Plunger Height
1.38 in
Overall Length
11.23 in

Details

Tip Material
Steel
Includes Mounting Nut
No
Includes
Black oxide finish with hardened plungers, Hardened steel pivot pins and bushings, Square plunger
Plunger Travel1
1.91 in
Handle Color
Red
Body Material
Steel
Includes Spindle
No
Recommended Spindle Manufacturer Model Number
220203-M
Holding Capacity - Maximum
5,800 lbf
Includes Locking Handle
No
Plunger Thread
M12
Mounting Holes Center to Center - Long Side
1.75 in
Plunger Shape
Square
Base Mounting Style
Flange
Exerted Force : Applied Force - Pulling
40:1
Item
MANUAL TOGGLE CLAMP
Mounting Holes Center to Center - Short Side
2.31 in
Handle Orientation
Horizontal
Application
Assembly fixtures, Light machining, Welding fixtures
Spindle Material
Steel
Exerted Force : Applied Force - Pushing
40:1

Description

MANUAL TOGGLE CLAMP, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 5,800 lbf, Plunger Travel 1.91 in, Plunger Height 1.38 in, Plunger Thread M12, Includes Spindle No, Application Assembly fixtures, Light machining, Welding fixtures, Arm Length 11.23 in, Body Material Steel, Exerted Force : Applied Force - Pulling 40:1, Exerted Force : Applied Force - Pushing 40:1, Handle Color Red
