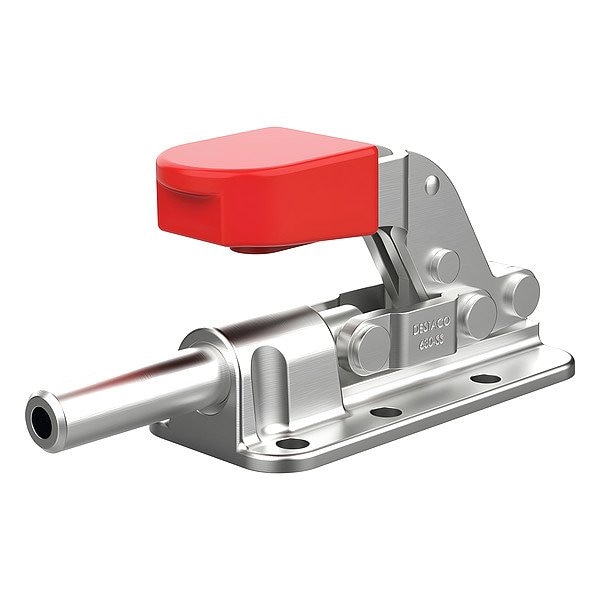

Manual Toggle Clamp, Flange
- Mfr # 630-RSS
- Zoro # G222706169
product price:Â
$
306.99
/ea
Free Shipping & Returns
Key Features
Holding Capacity - Maximum
2,500 lbf
Includes Locking Handle
Yes
Exerted Force : Applied Force - Pulling
23:1
Plunger Travel1
2 in
Body Material
Stainless Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 630-RSS
- Zoro #
- G222706169
- UPC #
- 697437563064
- Country of Origin
- Thailand
- Holding Capacity - Maximum
- 2,500 lbf
- Includes Locking Handle
- Yes
- Exerted Force : Applied Force - Pulling
- 23:1
- Plunger Travel1
- 2 in
- Body Material
- Stainless Steel
- Locking Position
- Retracted
- Recommended Spindle Manufacturer Model Number
- 237943
- Application
- Assembly & test, Tensioning devices, Welding
- Includes Spindle
- No
- Base Mounting Style
- Flange
- Plunger Shape
- Round
- Includes
- Toggle Lock
- Includes Mounting Nut
- No
- Tip Material
- Stainless Steel
- Exerted Force : Applied Force - Pushing
- 36:1
- Handle Orientation
- Horizontal
- Spindle Material
- Stainless Steel
- Mounting Holes Center to Center - Long Side
- 1.38 in
- Plunger Thread
- 3/8-16
- Item
- MANUAL TOGGLE CLAMP
- Mounting Holes Center to Center - Short Side
- 1.63 in
Dimensions
- Plunger Height
- 0.81 in
- Arm Length
- 7.06 in
- Overall Depth
- 3.05 in
- Wire Rope Length
- 7.06 in
- Tip Diameter
- 5/8 in
- Spindle Thread Size
- 3/8-16
- Overall Width
- 2.25 in
- Overall Length
- 7.06 in
- Length
- 7.06 in
Description
MANUAL TOGGLE CLAMP, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle Yes, Holding Capacity - Maximum 2,500 lbf, Plunger Travel 2 in, Plunger Height 0.81 in, Plunger Thread 3/8-16, Includes Spindle No, Application Assembly & test, Tensioning devices, Welding, Locking Position Retracted, Arm Length 7.06 in, Body Material Stainless Steel, Exerted Force : Applied Force - Pulling 23:1, Exerted Force : Applied Force - Pushing 36:1, Includes Toggle Lock
