Shop DE-STA-CO

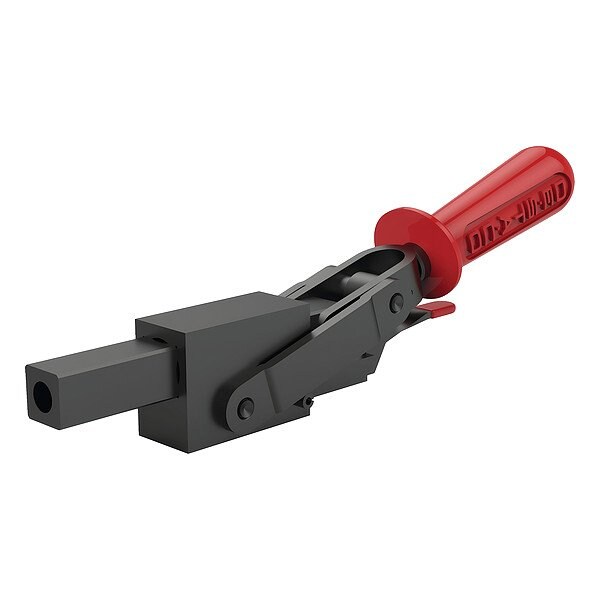

Manual Toggle Clamp, Solid

  • Mfr # 5150-MBR

  • Zoro # G022917383

product price:
$
172.99
/ea
Free Shipping & Returns

Key Features

Includes Locking Handle
Yes
Plunger Thread
M12
Plunger Travel1
1.91 in
Holding Capacity - Maximum
5,800 lbf
Spindle Thread Size
M12
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5150-MBR
Zoro #
G022917383
UPC #
697437979698
Country of Origin
Thailand

Dimensions

Spindle Thread Size
M12
Overall Width
1.57 in
Plunger Height
1.14 in
Wire Rope Length
11.23 in
Arm Length
11.23 in
Overall Depth
3.4 in
Overall Length
11.23 in
Length
11.23 in

Details

Includes Locking Handle
Yes
Plunger Thread
M12
Plunger Travel1
1.91 in
Item
MANUAL TOGGLE CLAMP
Holding Capacity - Maximum
5,800 lbf
Base Mounting Style
Solid
Body Material
Steel
Locking Position
Extended
Handle Orientation
Horizontal
Includes Spindle
No
Includes Mounting Nut
No
Handle Color
Red
Includes
Black Oxide Finish, Hardened Steel Pivot Pins and Bushings, Square Plunger, Toggle Lock
Exerted Force : Applied Force - Pulling
40:1
Exerted Force : Applied Force - Pushing
40:1
Tip Material
Steel
Recommended Spindle Manufacturer Model Number
220203-M
Spindle Material
Steel
Application
Assembly fixtures, Light machining, Welding fixtures
Plunger Shape
Square

Description

MANUAL TOGGLE CLAMP, Base Mounting Style Solid, Handle Orientation Horizontal, Includes Locking Handle Yes, Holding Capacity - Maximum 5,800 lbf, Plunger Travel 1.91 in, Plunger Height 1.14 in, Plunger Thread M12, Includes Spindle No, Application Assembly fixtures, Light machining, Welding fixtures, Locking Position Extended, Arm Length 11.23 in, Body Material Steel, Exerted Force : Applied Force - Pulling 40:1, Exerted Force : Applied Force - Pushing 40:1, Handle Color Red
