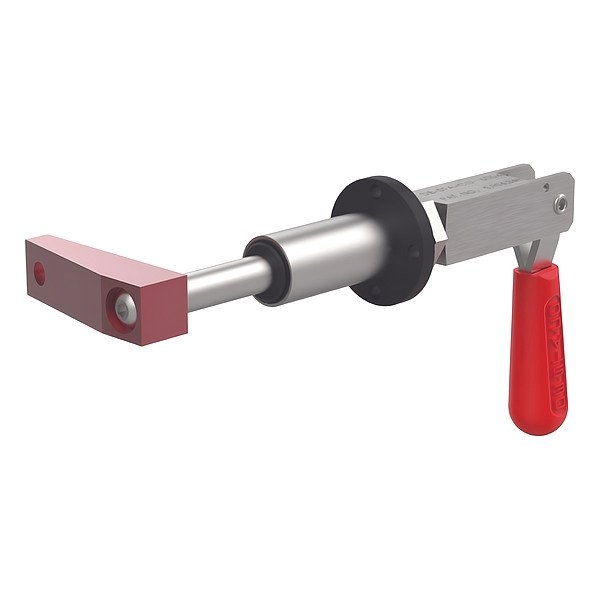

Manual Toggle Clamp, Through-Hole
Mfr # 6002-SWR
Zoro # G522705503
product price:Â
$
362.99
/ea
Free Shipping & Returns
Key Features
Arm Length
1.49 in
Height Under Arm
1.49 in
Exerted Force : Applied Force - Pulling
360
Includes
Right Hand Swing Clamp Arm
Exerted Force : Applied Force - Pushing
25
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 6002-SWR
- Zoro #
- G522705503
- UPC #
- 697437600295
- Country of Origin
- United States
Dimensions
- Arm Length
- 1.49 in
- Height Under Arm
- 1.49 in
Details
- Exerted Force : Applied Force - Pulling
- 360
- Includes
- Right Hand Swing Clamp Arm
- Exerted Force : Applied Force - Pushing
- 25
- Includes Mounting Nut
- No
- Recommended Spindle Manufacturer Model Number
- NA recommended 6004-219-07 Clamp Arm (not a spindle)
- Handle Color
- Red
- Base Mounting Style
- Through-Hole
- Handle Orientation
- Horizontal
- Clamping Force
- 229 lb
- Includes Locking Handle
- No
- Plunger Thread
- M8
- Holding Capacity - Maximum
- 400 lbf
- Includes Spindle
- No
- Plunger Travel1
- 0.75 in
- Locking Position
- Extended, Retracted
- Item
- MANUAL SWING CLAMP
- Application
- Assembly, Checking fixtures, Tensioning devices, Welding fixtures
Description
MANUAL SWING CLAMP, Base Mounting Style Through-Hole, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 400 lbf, Plunger Travel 0.75 in, Plunger Thread M8, Includes Spindle No, Application Assembly, Checking fixtures, Tensioning devices, Welding fixtures, Locking Position Extended, Retracted, Arm Length 1.49 in, Clamping Force 229 lb, Exerted Force : Applied Force - Pulling 360, Exerted Force : Applied Force - Pushing 25, Handle Color Red
