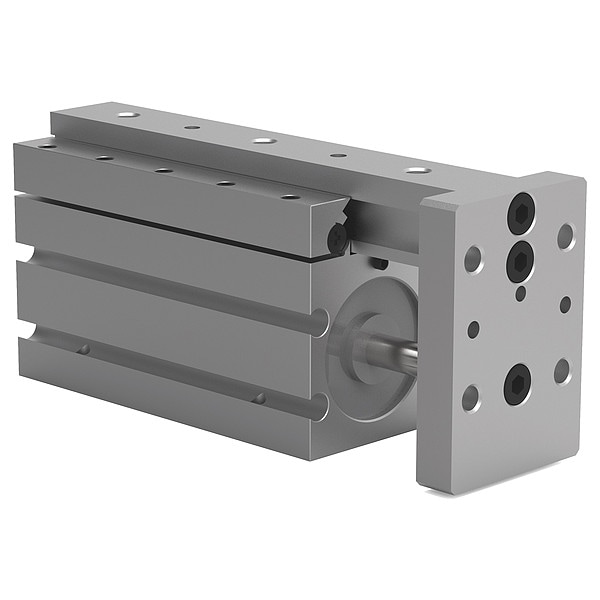

Mini Power Slide, 1-1/2In Stroke
Mfr # MPS-2-3
Zoro # G0893588
product price: $1,175.99
/ea
Free Shipping & Returns
Key Features
Minimum Operating Temperature
-30 Degrees F
Series
MPS
Maximum Pressure
100 psi
Size
2 M
Maximum Operating Temperature
180 Degrees F
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MPS-2-3
Zoro #
G0893588
UPC #
-
Country of Origin
United States
Dimensions
Size
2 M
Cylinder Bore Diameter
3/4 in
Details
Item
Mini Power Slide
Minimum Operating Temperature
-30 Degrees F
Series
MPS
Maximum Pressure
100 psi
Maximum Operating Temperature
180 Degrees F
Minimum Pressure
20 psi
Maximum Stroke
1 1/2 in
Seal Material
Buna-N
Repeatability
+/-0.01 in
Thrust Force @ 100 psi
44 lbf
Maximum Payload
2 lb
System of Measurement
Inch
Accuracy
+/-0.0001 in
Maximum Actuation Time
0.19 sec
Minimum Operating Pressure
20 psi
Maximum Operating Pressure
100 psi
Description
Mini Power Slide, Maximum Stroke 1 1/2 in, Cylinder Bore Diameter 3/4 in, Maximum Payload 2 lb, Series MPS, Thrust Force @ 100 psi 44 lbf, Size 2 M, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 20 psi, Seal Material Buna-N, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Accuracy +/-0.0001 in, Repeatability +/-0.01 in, Maximum Actuation Time 0.19 sec, System of Measurement Inch
