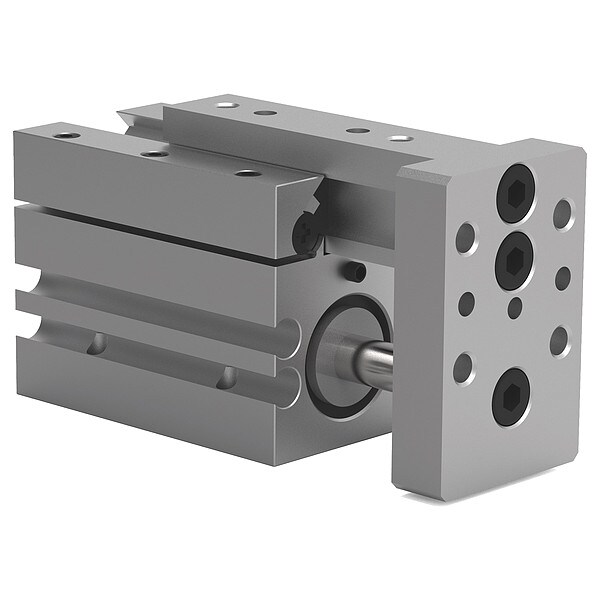

Mini Power Slide, 1/2In Stroke
Mfr # MPS-1-1
Zoro # G0893420
product price: $951.99
/ea
Free Shipping & Returns
Key Features
Maximum Operating Temperature
180 Degrees F
Maximum Pressure
100 psi
Series
MPS
Maximum Stroke
1/2 in
Minimum Pressure
20 psi
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MPS-1-1
Zoro #
G0893420
UPC #
-
Country of Origin
United States
Dimensions
Size
1 M
Cylinder Bore Diameter
1/2 in
Details
Item
Mini Power Slide
Maximum Operating Temperature
180 Degrees F
Maximum Pressure
100 psi
Series
MPS
Maximum Stroke
1/2 in
Minimum Pressure
20 psi
Minimum Operating Temperature
-30 Degrees F
Seal Material
Buna-N
Minimum Operating Pressure
20 psi
Thrust Force @ 100 psi
15 lbf
Maximum Actuation Time
0.1 sec
Repeatability
+/-0.01 in
System of Measurement
Inch
Maximum Payload
0.3 lb
Maximum Operating Pressure
100 psi
Accuracy
+/-0.0001 in
Description
Mini Power Slide, Maximum Stroke 1/2 in, Cylinder Bore Diameter 1/2 in, Maximum Payload 0.3 lb, Series MPS, Thrust Force @ 100 psi 15 lbf, Size 1 M, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 20 psi, Seal Material Buna-N, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Accuracy +/-0.0001 in, Repeatability +/-0.01 in, Maximum Actuation Time 0.1 sec, System of Measurement Inch
