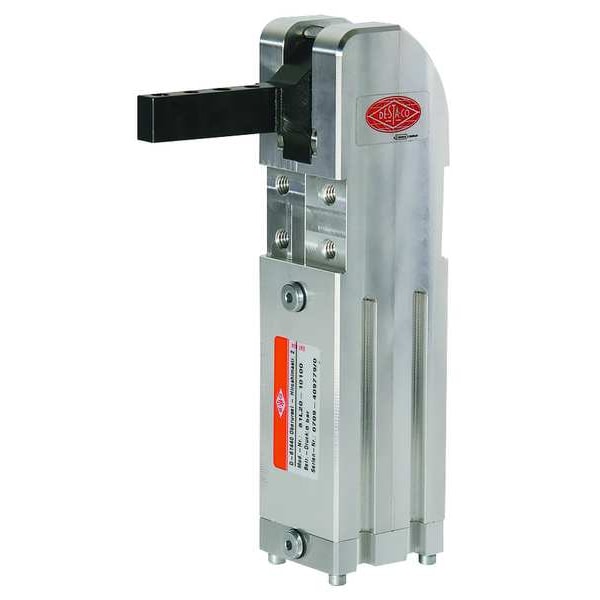

Pneumatic Clamp, 81L20, 90 Deg, 708 In-Lbs
- Mfr # 81L20-14100
- Zoro # G2156883
product price:Â
$
809.99
/ea
Free Shipping & Returns
Key Features
Holding Capacity (Lb.)
708
Arm
90 Degrees
Material
Aluminum, Steel Arm
Operating Temp.
-14 Degrees to 195 Degrees F
Max. Input Air Pressure (PSI)
120
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 81L20-14100
- Zoro #
- G2156883
- UPC #
- -
- Country of Origin
- Germany
- Item
- Pneumatic Swing and Toggle Clamp
- Holding Capacity (Lb.)
- 708
- Arm
- 90 Degrees
- Material
- Aluminum, Steel Arm
- Operating Temp.
- -14 Degrees to 195 Degrees F
- Max. Input Air Pressure (PSI)
- 120
- Base Mounting Centers (In.)
- 20 x 15mm
- Max. Torque (In.-Lbs.)
- 708
- Type
- 81L20
- Holding Capacity
- 708 lb
- Body Material
- Aluminum
- Max. Operating Temperature
- 195 Degrees F
- Min. Operating Temperature
- -14 Degrees F
- Arm Material
- Aluminum
- Arm Swing Angle
- 90 Degrees
- Max. Input Air Pressure
- 120 psi
- Input Air Pressure - Maximum
- 6 bar
- Operating Temperature - Maximum
- 195 Degrees F
- Air Connection Type
- G
- Operating Temperature - Minimum
- -14 Degrees F
- Air Connection Center-to-Center Distance
- 0.59 in
Dimensions
- Port Size
- M6
- Overall Width
- 2.54 in
- Arm Length
- 2.12 in
- Arm Tapered End Height
- 2.54 in
- Overall Length
- 5.94 in
- Air Connection Size
- M5
- Arm Overall Height
- 0.47 in
- Overall Height
- 5.94 in
- Cylinder Bore Size
- 20 mm
- Wire Rope Length
- 5.94 in
- Length
- 5.94 in
Description
Pneumatic Swing and Toggle Clamp, Aluminum, Overall Length 5.94 in, Overall Height 5.94 in, Arm Length 2.12 in, Arm Material Aluminum, Arm Swing Angle 90 Degrees
