  11. Pneumatic Clamp, 82L4G, 3360 In-Lbs
This item is Discontinued.

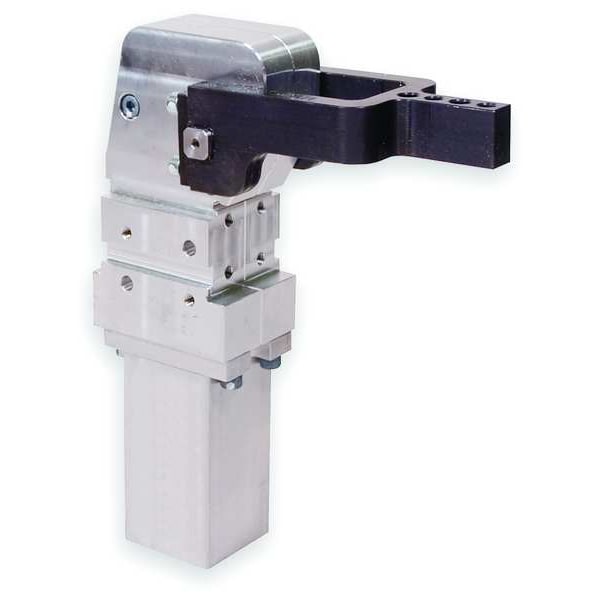

De-Sta-Co Pneumatic Clamp, 82L4G, 3360 In-Lbs 82L4G-2030000

Pneumatic Clamp, 82L4G, 3360 In-Lbs (Discontinued)

  • Mfr # 82L4G-2030000
  • Zoro # G1983301
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
82L4G-2030000
Zoro #
G1983301
UPC #
-
Country of Origin
United States

Dimensions

Overall Width
74 mm
Port Size
G1/4
Overall Length
824 mm
Arm Length
110 mm
Total Stroke Length
0.04 in
Arm Overall Height
721 mm
Air Connection Size
1/4 in
Threaded Body Thread Size
1/4"
Overall Height
241 mm

Details

Item
Pneumatic Swing and Toggle Clamp
Holding Capacity (Lb.)
3360
Material
Aluminum, Steel Arm
Operating Temp.
-14 to +195 F
Max. Input Air Pressure (PSI)
120
Base Mounting Centers (In.)
25 x 20mm
Features
Enclosed Model with Hand Lever, Lightweight Design
Type
82L4G
Max. Torque (In.-Lbs.)
3360
Holding Capacity
3360 lb
Max. Input Air Pressure
120 psi
Max. Operating Temperature
195 Degrees F
Min. Operating Temperature
-14 Degrees F
Body Material
Aluminum
Arm Material
Steel
Operating Temperature - Maximum
195 Degrees F
Body Mounting Type
Threaded
Arm Swing Angle
90 Degrees
Air Connection Center-to-Center Distance
0.04 in
Operating Temperature - Minimum
-14 Degrees F
Input Air Pressure - Maximum
87 psi
Air Connection Type
NPT
Compatible Manufacturer Model Number
Mfr. No. 82L4G-2
Clamping Force - Maximum
89 lbf

Description

Pneumatic Swing and Toggle Clamp, Aluminum, Overall Length 824 mm, Overall Height 241 mm, Arm Length 110 mm, Arm Material Steel, Arm Swing Angle 90 Degrees
