  11. Pneumatic Swing Clamp, RH Swing, 80 Lb

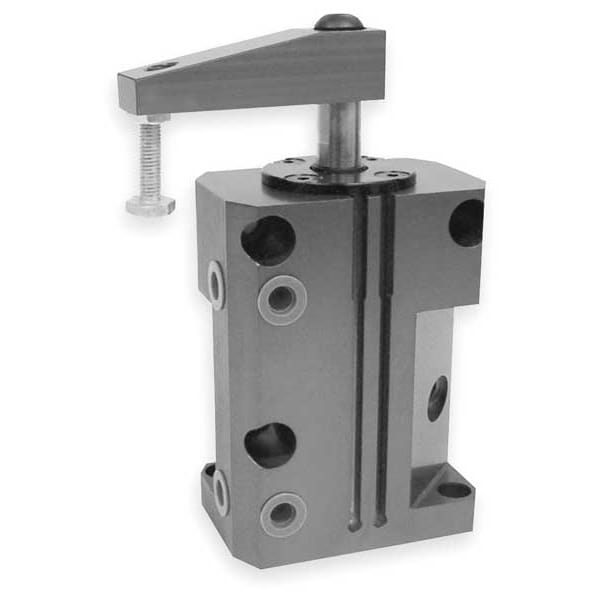

De-Sta-Co Pneumatic Swing Clamp, RH Swing, 80 Lb 8315 - main

Pneumatic Swing Clamp, RH Swing, 80 Lb

  • Mfr # 8315

  • Zoro # G2683606

product price: $622.99
/ea
Free Shipping & Returns

Key Features

Holding Capacity (Lb.)
89
Material
Aluminum
Operating Temp.
-14 to +195 F
Max. Input Air Pressure (PSI)
130
Includes
Spindle 485203-AL
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8315
Zoro #
G2683606
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
5.08 in
Port Size
1/8 in NPT
Stroke Length During Rotation
3/4 in
Total Stroke Length
1.25 in
Cylinder Bore Size
1.5 in
Air Connection Size
1/8 in
Overall Length
3 in
Arm Overall Height
1.47 in
Overall Width
2 in
Arm Length
2.75 in

Details

Item
Pneumatic Swing and Toggle Clamp
Holding Capacity (Lb.)
89
Material
Aluminum
Operating Temp.
-14 to +195 F
Max. Input Air Pressure (PSI)
130
Includes
Spindle 485203-AL
Type
RH Swing
Features
Designed for Several Millions Cycles, Lightweight and Robust
Base Mounting Centers (In.)
1.44 x 2.44
Body Material
Aluminum
Max. Input Air Pressure
130 psi
Max. Operating Temperature
195 Degrees F
Swing Direction
Right
Holding Capacity
89 lb
Application
Assembly, Light Machining, Welding
Max. Vertical Clamp Stroke
12.70mm
Min. Operating Temperature
0 Degrees F
Air Connection Center-to-Center Distance
2.46 in
Clamping Force - Maximum
89 lbf
Plunger Thread
3/8"-16
Arm Material
Aluminum
Body Mounting Type
Mounting Holes
Input Air Pressure - Maximum
130 psi
Movement Direction
Right
Vertical Clamp Stroke - Maximum
0.5 in
Operating Temperature - Minimum
-18 Degrees F
Air Connection Type
NPT
Operating Temperature - Maximum
140 Degrees F
Arm Swing Angle
90 Degrees

Description

Pneumatic Swing and Toggle Clamp, Aluminum, Overall Length 3 in, Overall Height 5.08 in, Application Assembly, Light Machining, Welding, Arm Length 2.75 in, Arm Material Aluminum, Arm Swing Angle 90 Degrees
