De-Sta-Co

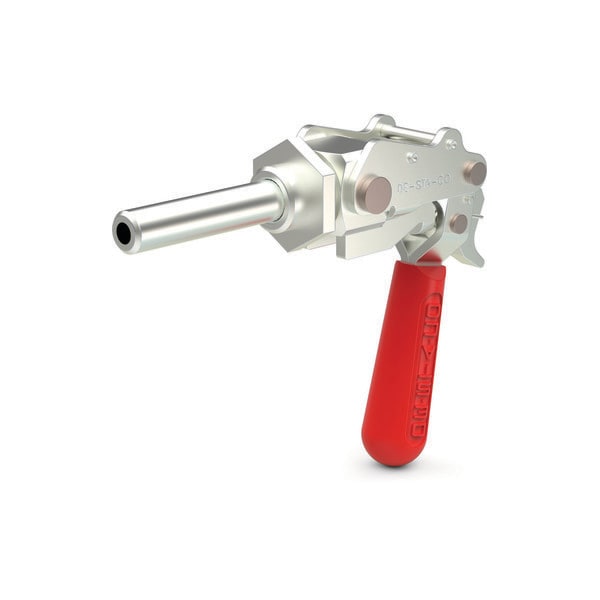

Straight Line Action 624-Mm

product price: $76.65
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Includes Jam Nut
  • Application Metalworking, Welding, Assembly And Light Machining Fixture
  • Overall Width 1.25 in
  • Overall Length 6.68 in
  • Plunger Height 0.75 in
See all product information

Product Information

Dimensions

Overall Width 1.25 in
Overall Length 6.68 in
Plunger Height 0.75 in
Tip Diameter 11/16 in
Fastener Thread Size 1-14 in
Overall Depth 5.6 in
Spindle Thread Size M10
Height Under Arm 0.75 in
Arm Length 2.63 in

Details

Item Straight Line Action 624-Mm
Includes Jam Nut
Application Metalworking, Welding, Assembly And Light Machining Fixture
Plunger Thread M10
Exerted Force : Applied Force - Pushing 49:1
Includes Locking Handle No
Handle Color Red
Plunger Travel1 2.63 in
Handle Orientation Vertical
Includes Spindle No
Body Material Steel
Base Mounting Style Through-Hole
Holding Capacity - Maximum 700 lbf
Exerted Force : Applied Force - Pulling 21:1
Accommodates Workpiece Variation No
Requires Articulation No
Recommended Mounting Nut Manufacturer Model Number 624105-M
Handle Material Steel with Plastic Cover
Includes Mounting Nut Yes
Spindle Material Steel
Tip Material Steel
Clamping Force 700 lb
Recommended Spindle Manufacturer Model Number 210203-M
Plunger Shape Round
Locking Position Extended, Retracted
Reflectivity Reflective
Series 600 Series Straight Line

Description

Straight Line Action 624-Mm, Base Mounting Style Through-Hole, Handle Orientation Vertical, Includes Locking Handle No, Holding Capacity - Maximum 700 lbf, Plunger Travel 2.63 in, Plunger Height 0.75 in, Plunger Thread M10, Includes Spindle No, Application Metalworking, Welding, Assembly And Light Machining Fixture, Locking Position Extended, Retracted, Accommodates Workpiece Variation No, Arm Length 2.63 in, Body Material Steel, Clamping Force 700 lb
