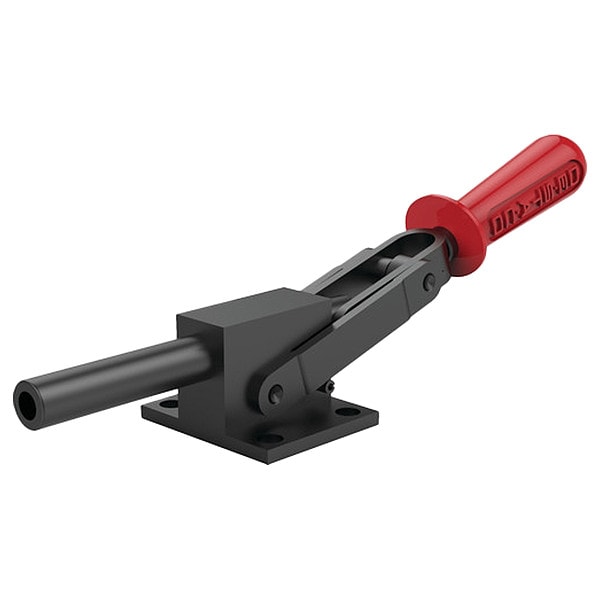

Straight-Line Action Clamp, 13.05 in L
- Mfr # 5133-M
- Zoro # G811320639
product price:Â
$
104.99
/ea
Free Shipping & Returns
Key Features
Body Material
Steel
Application
Fixture Assembly, Light Machining, Welding Fixtures
Base Mounting Style
Flange
Exerted Force : Applied Force - Pushing
40:1
Overall Width
2.99 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 5133-M
- Zoro #
- G811320639
- UPC #
- -
- Country of Origin
- Thailand
- Item
- Straight-Line Action Clamp
- Body Material
- Steel
- Application
- Fixture Assembly, Light Machining, Welding Fixtures
- Base Mounting Style
- Flange
- Exerted Force : Applied Force - Pushing
- 40:1
- Accommodates Workpiece Variation
- No
- Mounting Holes Center to Center - Short Side
- 1.75 in
- Includes Spindle
- No
- Mounting Holes Center to Center - Long Side
- 2.31 in
- Handle Material
- Steel
- Plunger Travel1
- 3.18 in
- Recommended Spindle Manufacturer Model Number
- 220203-M
- Holding Capacity - Maximum
- 4,600 lbf
- Includes Locking Handle
- No
- Plunger Shape
- Round
- Plunger Thread
- M12
- Includes Mounting Nut
- No
- Locking Position
- Extended
- Handle Orientation
- Horizontal
- Reflectivity
- Nonreflective
- Handle Color
- Red
- Requires Articulation
- Yes
Description
Straight-Line Action Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 4,600 lbf, Plunger Travel 3.18 in, Plunger Height 1.38 in, Plunger Thread M12, Includes Spindle No, Application Fixture Assembly, Light Machining, Welding Fixtures, Locking Position Extended, Accommodates Workpiece Variation No, Arm Length 3.24 in, Body Material Steel, Exerted Force : Applied Force - Pulling Not Applicable
