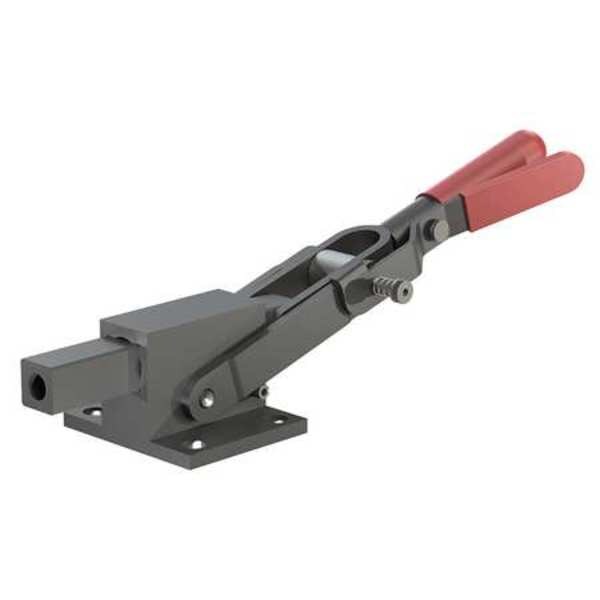

Straight Line Action Clamp, 5800 lb Cap
- Mfr # 5150-R
- Zoro # G5158072
product price:Â
$
238.99
/ea
Free Shipping & Returns
Key Features
Holding Capacity (Lb.)
5800
Thread Size
1/2-13
Plunger Dia. (In.)
0.75
Plunger Travel (In.)
1.91
Overall Height (In.)
3.63
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 5150-R
- Zoro #
- G5158072
- UPC #
- 69743797971
- Country of Origin
- Thailand
- Item
- Straight Line Clamp
- Holding Capacity (Lb.)
- 5800
- Plunger Travel (In.)
- 1.91
- Base Mounting Centers (In.)
- 1.75 x 2.31
- Handle
- 125 Degrees
- Type
- Square Plunger, Flanged Base With Toggle Lock Plus
- Mounting Holes Center to Center - Short Side
- 1.75 in
- Holding Capacity - Maximum
- 5,800 lbf
- Body Material
- Steel
- Base Mounting Style
- Flange
- Plunger Shape
- Square
- Plunger Thread
- 1/2-13
- Locking Position
- Extended
- Accommodates Workpiece Variation
- No
- Mounting Holes Center to Center - Long Side
- 2.31 in
- Includes Spindle
- No
- Application
- Assembly, Checking Fixtures, Closures, Machining, Welding, Wood Working
- Recommended Spindle Manufacturer Model Number
- 325203
- Includes Locking Handle
- Yes
- Plunger Travel1
- 1.91 in
- Exerted Force : Applied Force - Pushing
- 40:1
Dimensions
- Thread Size
- 1/2-13
- Plunger Dia. (In.)
- 0.75
- Overall Height (In.)
- 3.63
- Overall Length (In.)
- 11.12
- Height Under Arm (In.)
- 1.37
- Overall Length
- 11.23 in
- Overall Width
- 2.99 in
- Height Under Arm
- 1.57 in
- Overall Depth
- 3.63 in
- Plunger Height
- 1.38 in
- Arm Length
- 1.96 in
- Tip Diameter
- 3/4 in
- Wire Rope Length
- 11.23 in
- Length
- 11.23 in
Description
Straight Line Clamp, Base Mounting Style Flange, Includes Locking Handle Yes, Holding Capacity - Maximum 5,800 lbf, Plunger Travel 1.91 in, Plunger Height 1.38 in, Plunger Thread 1/2-13, Includes Spindle No, Application Assembly, Checking Fixtures, Closures, Machining, Welding, Wood Working, Locking Position Extended, Accommodates Workpiece Variation No, Arm Length 1.96 in, Body Material Steel, Exerted Force : Applied Force - Pushing 40:1, Height Under Arm 1.57 in
