Shop DE-STA-CO

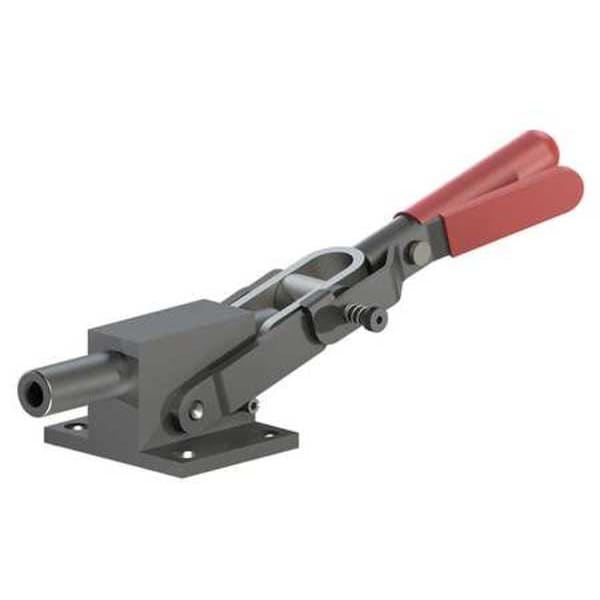

Straight Line Clamp, 2500 lb Cap

  • Mfr # 5131-R

  • Zoro # G5160233

product price:
$
148.99
/ea
Free Shipping & Returns

Key Features

Holding Capacity (Lb.)
2500
Thread Size
5/16-18
Plunger Dia. (In.)
0.51
Plunger Travel (In.)
1
Overall Height (In.)
3.15
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5131-R
Zoro #
G5160233
UPC #
69743797955
Country of Origin
Thailand

Dimensions

Thread Size
5/16-18
Plunger Dia. (In.)
0.51
Overall Height (In.)
3.15
Overall Length (In.)
7.37
Height Under Arm (In.)
1.1
Overall Width
2.52 in
Overall Length
7.61 in
Tip Diameter
9/16 in
Height Under Arm
1.1 in
Plunger Height
1.1 in
Overall Depth
2.49 in
Arm Length
1.15 in
Wire Rope Length
7.61 in
Length
7.61 in

Details

Item
Straight Line Clamp
Holding Capacity (Lb.)
2500
Plunger Travel (In.)
1
Base Mounting Centers (In.)
1.13 x 1.87
Type
Flanged Base With Toggle Lock Plus
Handle
113 Degrees
Exerted Force : Applied Force - Pushing
40:1
Holding Capacity - Maximum
2,500 lbf
Plunger Travel1
1 in
Accommodates Workpiece Variation
No
Recommended Spindle Manufacturer Model Number
461203
Mounting Holes Center to Center - Short Side
1.13 in
Plunger Shape
Round
Plunger Thread
5/16-18
Includes Locking Handle
Yes
Locking Position
Extended
Application
Fixture Assembly, Light Machining, Welding Fixtures
Includes Spindle
No
Body Material
Steel
Mounting Holes Center to Center - Long Side
1.87 in
Base Mounting Style
Flange

Description

Straight Line Clamp, Base Mounting Style Flange, Includes Locking Handle Yes, Holding Capacity - Maximum 2,500 lbf, Plunger Travel 1 in, Plunger Height 1.1 in, Plunger Thread 5/16-18, Includes Spindle No, Application Fixture Assembly, Light Machining, Welding Fixtures, Locking Position Extended, Accommodates Workpiece Variation No, Arm Length 1.15 in, Body Material Steel, Exerted Force : Applied Force - Pushing 40:1, Height Under Arm 1.1 in, Mounting Holes Center to Center - Long Side 1.87 in
