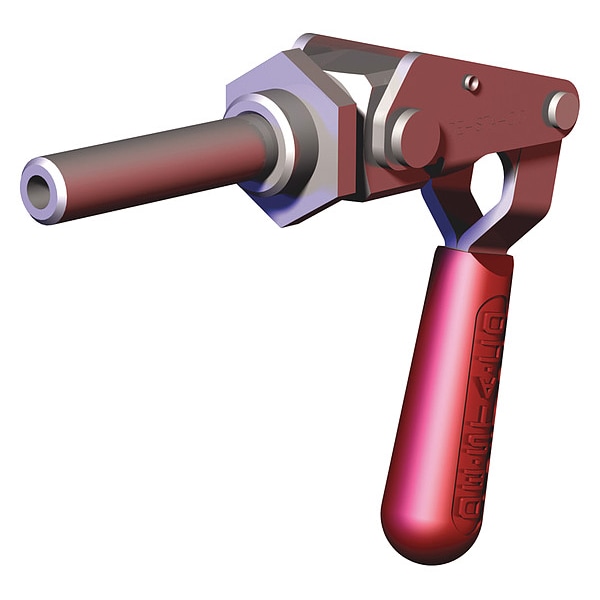

Straight Line Clamp
- Mfr # 624-MMRSS
- Zoro # G1015230
product price:Â
$
232.99
/ea
Free Shipping & Returns
Key Features
Includes
Ergonomic Grip Handle, Mounting Nut
Features
Ergonomic Handle Grip Supplied, Locks in Both Extended and Retracted Position, Versatile and Compact
Plunger Dia.
0.6200"
Overall Length
6.68 in
Application
Assembly, Checking Fixtures, Tensioning Devices, Welding Fixtures
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 624-MMRSS
- Zoro #
- G1015230
- UPC #
- -
- Country of Origin
- Thailand
- Item
- Straight Line Clamp
- Includes
- Ergonomic Grip Handle, Mounting Nut
- Features
- Ergonomic Handle Grip Supplied, Locks in Both Extended and Retracted Position, Versatile and Compact
- Application
- Assembly, Checking Fixtures, Tensioning Devices, Welding Fixtures
- Color
- Gray, Red
- Capacity
- 700 lbf.
- Plunger Travel
- 2-5/8"
- Includes Mounting Nut
- Yes
- Recommended Spindle Manufacturer Model Number
- 624105-M
- Handle Color
- Gray; Red
- Accommodates Workpiece Variation
- No
- Plunger Shape
- Round
- Includes Spindle
- No
- Plunger Travel1
- 2.63 in
- Base Mounting Style
- Flange
- Locking Position
- Extended, Retracted
- Plunger Thread
- M10
- Includes Locking Handle
- Yes
- Exerted Force : Applied Force - Pulling
- 21:1
- Exerted Force : Applied Force - Pushing
- 49:1
- Holding Capacity - Maximum
- 700 lbf
- Recommended Mounting Nut Manufacturer Model Number
- 624105-M
- Body Material
- Stainless Steel
Dimensions
- Plunger Dia.
- 0.6200"
- Overall Length
- 6.68 in
- Overall Width
- 1.81 in
- Overall Height
- 5.6000"
- Plunger Height
- 0.81 in
- Arm Length
- 2.61 in
- Overall Depth
- 5.63 in
- Wire Rope Length
- 6.68 in
- Length
- 6.68 in
Description
Straight Line Clamp, Base Mounting Style Flange, Includes Locking Handle Yes, Holding Capacity - Maximum 700 lbf, Plunger Travel 2.63 in, Plunger Height 0.81 in, Plunger Thread M10, Includes Spindle No, Application Assembly, Checking Fixtures, Tensioning Devices, Welding Fixtures, Locking Position Extended, Retracted, Accommodates Workpiece Variation No, Arm Length 2.61 in, Body Material Stainless Steel, Exerted Force : Applied Force - Pulling 21:1, Exerted Force : Applied Force - Pushing 49:1
