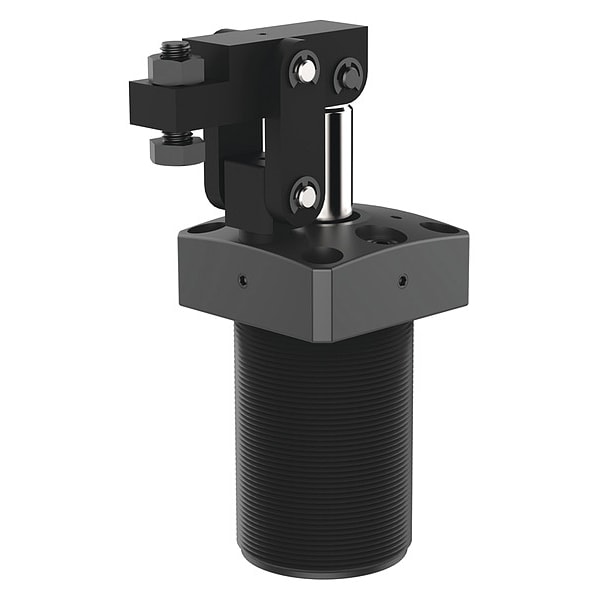

De-Sta-Co Swing and Toggle Clamp 8740 - main

Swing and Toggle Clamp

  • Mfr # 8740

  • Zoro # G1895235

product price: $574.99
/ea
Free Shipping & Returns

Key Features

Type
Lever Clamp
Color
Black
Application
Assembly and Welding Fixtures, Light Machining
Includes
Clamping Arm and Spindle
Body Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8740
Zoro #
G1895235
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Overall Length
2.65 in
Overall Height
6.93 in
Overall Width
2.65 in
Port Size
M8
Threaded Body Thread Size
M55 x 1.50
Arm Height
5-1/4"
Cylinder Bore Size
1.57 in
Arm Overall Height
2.4 in
Mounting Hole Size
M8
Arm Length
0.93 in
Air Connection Size
1/8 in

Details

Item
Pneumatic Swing and Toggle Clamp
Type
Lever Clamp
Color
Black
Application
Assembly and Welding Fixtures, Light Machining
Includes
Clamping Arm and Spindle
Body Material
Aluminum
Features
Alternative Solution To Swing Clamps When Space Is Limited, Clamping Arm and Spindle Included, Forward, Non Toggle Locking Linkage, or Right (Relative to Ports) within the Same Clamp Body, The Clamping Lever May be Positioned Left
Holding Capacity
106 lbf.
Arm Swing Angle
82 Degrees
Max. Vertical Clamp Stroke
0.1200"
Max. Input Air Pressure
7 bar
Body Type
Threaded
Max. Operating Temperature
175 Degrees F
Min. Operating Temperature
14 Degrees F
Clamping Force - Maximum
106 lbf
Air Connection Center-to-Center Distance
1.02 in
Body Mounting Type
Mounting Holes
Input Air Pressure - Maximum
100 psi
Vertical Clamp Stroke - Maximum
0.12 in
Arm Material
Aluminum
Air Connection Type
NPT
Plunger Thread
M8 x 1.25
Operating Temperature - Maximum
175 Degrees F
Operating Temperature - Minimum
14 Degrees F

Description

Pneumatic Swing and Toggle Clamp, Aluminum, Threaded, Overall Length 2.65 in, Overall Height 6.93 in, Application Assembly and Welding Fixtures, Light Machining, Arm Height 5-1/4 In., Arm Length 0.93 in, Arm Material Aluminum, Arm Swing Angle 82 Degrees
