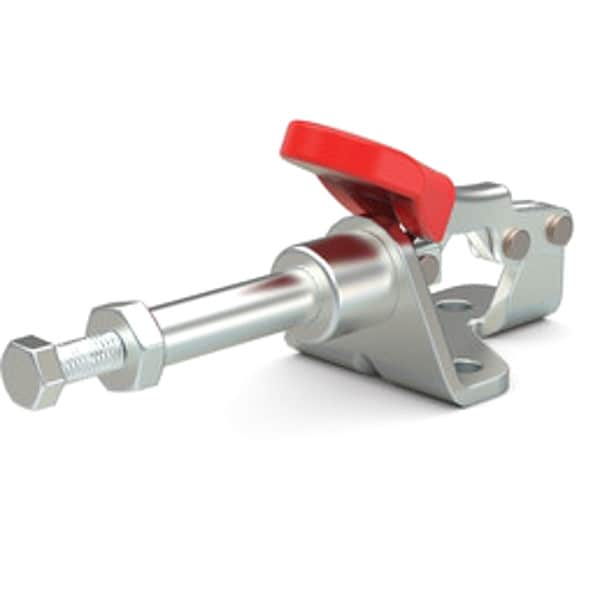

Toggle Clamp, Flanged Base, 100 Lbs, 1.27

  • Mfr # 601

  • Zoro # G3310081

product price:
$
17.69
/ea

Key Features

Holding Capacity (Lb.)
100
Thread Size
#8-32
Plunger Dia. (In.)
0.25
Plunger Travel (In.)
0.63
Overall Height (In.)
1.27
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
601
Zoro #
G3310081
UPC #
697437560100
Country of Origin
Thailand
Item
Straight Line Clamp
Holding Capacity (Lb.)
100
Plunger Travel (In.)
0.63
Base Mounting Centers (In.)
0.63 x 0.63
Type
Flanged Base Mount
Handle
Thumb
Includes
Spindle
Application
Assembly, Gluing, Soldering, Testing
Base Mounting Centers
5/8 in x 5/8 in
Features
Compact Straight Line Action Clamp
Capacity
100 lb
Plunger Travel
0.6300 in
Material - Machining
Steel
Handle Shape
Thumb
Mounting Holes Center to Center - Long Side
0.63 in
Accommodates Workpiece Variation
No
Exerted Force : Applied Force - Pulling
25:1
Includes Locking Handle
No
Plunger Travel1
0.63 in
Plunger Shape
Round
Recommended Spindle Manufacturer Model Number
105203
Includes Spindle
Yes
Base Mounting Style
Flange
Handle Orientation
Horizontal
Exerted Force : Applied Force - Pushing
14:1
Holding Capacity - Maximum
100 lbf
Plunger Thread
#8-32
Body Material
Steel
Mounting Holes Center to Center - Short Side
0.63 in

Description

Straight Line Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 100 lbf, Plunger Travel 0.63 in, Plunger Height 0.5 in, Plunger Thread #8-32, Includes Spindle Yes, Application Assembly, Gluing, Soldering, Testing, Accommodates Workpiece Variation No, Arm Length 1.28 in, Body Material Steel, Exerted Force : Applied Force - Pulling 25:1, Exerted Force : Applied Force - Pushing 14:1, Fastener Thread Size #8-32
