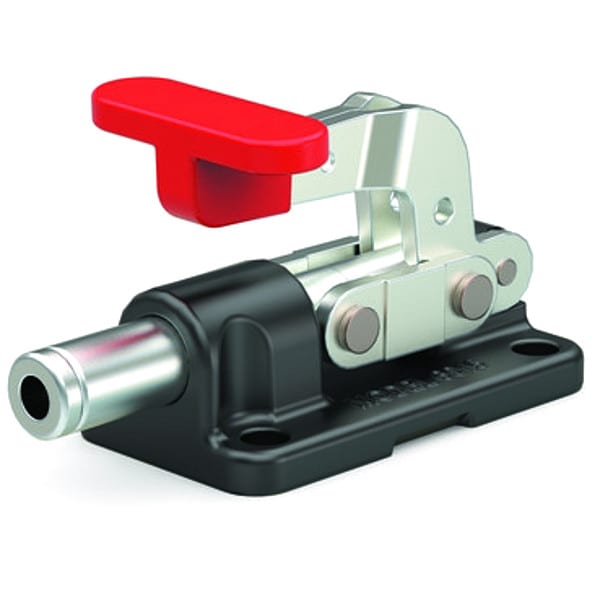

Toggle Clamp, Flanged Base, 560 Lbs, 1.59

product price: $42.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Holding Capacity (Lb.) 560
  • Thread Size M6
  • Plunger Dia. (In.) 0.39
  • Plunger Travel (In.) 0.70
  • Overall Height (In.) 1.59
See all product information

Product Information

Dimensions

Thread Size M6
Plunger Dia. (In.) 0.39
Overall Height (In.) 1.59
Overall Length (In.) 2.96
Height Under Arm (In.) 0.50
Overall Height 1.5900 in
Overall Length 2.96 in
Plunger Dia. 0.3900 in
Height Under Arm 0.5 in
Overall Depth 1.59 in
Overall Width 1.26 in
Plunger Height 0.5 in
Fastener Thread Size M6

Details

Item Straight Line Clamp
Holding Capacity (Lb.) 560
Plunger Travel (In.) 0.70
Base Mounting Centers (In.) 0.87 x 1.75
Includes Vinyl Grip
Handle T
Type Flanged Base Mount
Handle Shape T-Handle
Material - Machining Steel
Features Smallest of the Solid Base Straight Line Action Clamps
Base Mounting Centers 7/8 in x 3/4 in
Application Assembly, Checking Fixtures, Tensioning Devices
Plunger Travel 0.7000 in
Capacity 560 lb
Exerted Force : Applied Force - Pushing 35:1
Mounting Holes Center to Center - Short Side 1.26 in
Body Material Steel
Locking Position Retracted
Base Mounting Style Flange
Plunger Shape Round
Plunger Travel1 0.7 in
Plunger Thread M6
Holding Capacity - Maximum 560 lbf
Includes Locking Handle No
Includes Spindle No
Handle Orientation Horizontal
Accommodates Workpiece Variation No
Exerted Force : Applied Force - Pulling 35:1
Recommended Spindle Manufacturer Model Number 205203-M
Mounting Holes Center to Center - Long Side 1.75 in

Description

Straight Line Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 560 lbf, Plunger Travel 0.7 in, Plunger Height 0.5 in, Plunger Thread M6, Includes Spindle No, Application Assembly, Checking Fixtures, Tensioning Devices, Locking Position Retracted, Accommodates Workpiece Variation No, Body Material Steel, Exerted Force : Applied Force - Pulling 35:1, Exerted Force : Applied Force - Pushing 35:1, Fastener Thread Size M6
