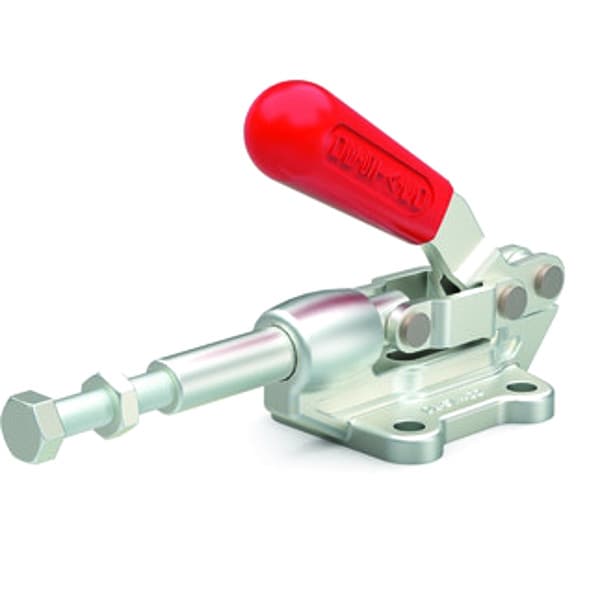

Toggle Clamp, Flanged Base, SS, 840 Lbs

  • Mfr # 603-SS

  • Zoro # G1419372

product price:
$
89.19
/ea

Key Features

Holding Capacity (Lb.)
840
Thread Size
5/16 in
Plunger Dia. (In.)
0.47
Plunger Travel (In.)
1.25
Overall Height (In.)
3.43
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
603-SS
Zoro #
G1419372
UPC #
-
Country of Origin
Thailand

Dimensions

Thread Size
5/16 in
Plunger Dia. (In.)
0.47
Overall Height (In.)
3.43
Overall Length (In.)
4.77
Height Under Arm (In.)
0.97
Overall Height
3.4300 in
Overall Length
4.69 in
Height Under Arm
31/32 in
Plunger Dia.
0.4700 in
Overall Depth
1.88 in
Plunger Height
0.97 in
Fastener Thread Size
5/16 in
Arm Length
1.28 in
Overall Width
1.88 in
Wire Rope Length
4.69 in
Length
4.69 in

Details

Item
Straight Line Clamp
Holding Capacity (Lb.)
840
Plunger Travel (In.)
1.25
Base Mounting Centers (In.)
1.44 x 1.31
Includes
Ergonomic Grip
Type
Flanged Base Mount
Handle
Straight
Capacity
840 lb
Application
Assembly and Test, Checking Fixtures, Tensioning Devices, Welding Fixtures
Features
Allows Handle to Rotate, Large Holding Capacity
Plunger Travel
1-1/4 in
Handle Shape
Straight
Base Mounting Centers
1.44 in x 1.31 in
Mounting Holes Center to Center - Long Side
1.44 in
Includes Locking Handle
No
Mounting Holes Center to Center - Short Side
1.31 in
Exerted Force : Applied Force - Pushing
23:1
Holding Capacity - Maximum
840 lbf
Handle Orientation
Horizontal
Includes Spindle
No
Body Material
Stainless Steel
Locking Position
Extended, Retracted
Exerted Force : Applied Force - Pulling
34:1
Base Mounting Style
Flange
Plunger Travel1
1.25 in
Plunger Thread
5/16-18
Accommodates Workpiece Variation
No
Plunger Shape
Round

Description

Straight Line Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 840 lbf, Plunger Travel 1.25 in, Plunger Height 0.97 in, Plunger Thread 5/16-18, Includes Spindle No, Application Assembly and Test, Checking Fixtures, Tensioning Devices, Welding Fixtures, Locking Position Extended, Retracted, Accommodates Workpiece Variation No, Arm Length 1.28 in, Body Material Stainless Steel, Exerted Force : Applied Force - Pulling 34:1
