  11. Toggle Clamp, Horiz, SS, 1.06 In, 2.75 In
Shop All Toggle & Latch Clamps
De-Sta-Co

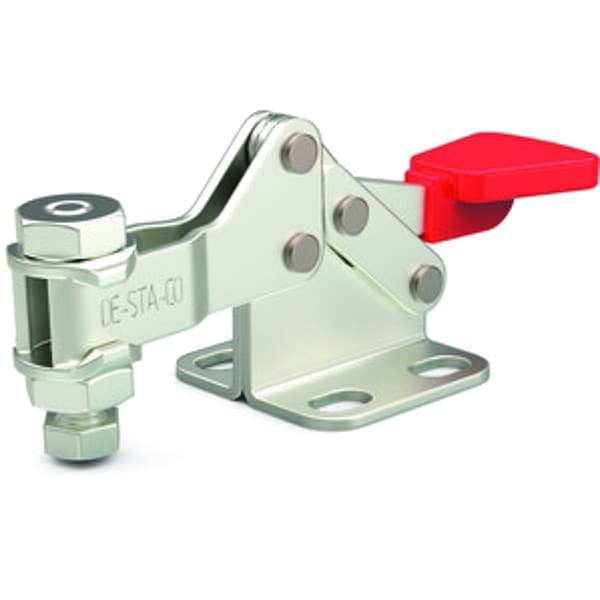

Toggle Clamp, Horiz, SS, 1.06 In, 2.75 In

product price: $40.25
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Horizontal Handle Hold Down
  • Holding Capacity (Lb.) 100
  • Overall Height (In.) 1.06 in
  • Body Material Stainless Steel
  • Overall Length (In.) 2.74 in
See all product information

Product Information

Dimensions

Overall Height (In.) 1.06 in
Overall Length (In.) 2.74 in
Height Under Arm (In.) 0.44 in
Thread Size 8-32
Dia. (In.) 0.17 in
Overall Depth 1.06 in
Fastener Thread Size #8-32
Height Under Arm 0.4 in
Spindle Thread Size 8"-32
Arm Length 0.93 in
Overall Length 2.71 in

Details

Item Toggle Clamp
Type Horizontal Handle Hold Down
Holding Capacity (Lb.) 100
Body Material Stainless Steel
Spindle Material Stainless Steel
Handle 90 Degrees
Base Mounting Centers (In.) 0.63 x 0.63
Includes Flanged Washer (105906), Spindle (205943)
Spindle Hex Head SS
Arm U-Shaped
Application Assembly, Checking Fixtures, Clamping, Closures, Food Processing, Woodworking
Mounting Holes Center to Center - Short Side 0.63 in
Base Mounting Style Flange
Arm Style U-Bar
Includes Locking Handle No
Tip Material Stainless Steel
Accommodates Workpiece Variation No
Holding Capacity - Maximum 100 lbf
Mounting Holes Center to Center - Long Side 0.63 in
Handle Orientation Horizontal
Clamp Arm Opening Angle 90 Degrees

Description

Toggle Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Holding Capacity - Maximum 100 lbf, Arm Style U-Bar, Tip Material Stainless Steel, Clamp Arm Opening Angle 90 Degrees , Arm Length 0.93 in, Height Under Arm 0.4 in, Includes Locking Handle No, Accommodates Workpiece Variation No, Application Assembly, Checking Fixtures, Clamping, Closures, Food Processing, Woodworking, Body Material Stainless Steel, Fastener Thread Size #8-32
