Shop DE-STA-CO

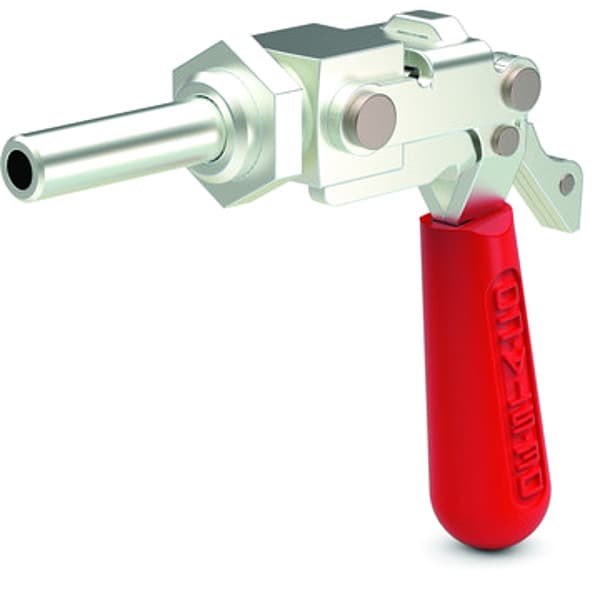

Toggle Clamp, Through-Hole, Hole, SS, 400

  • Mfr # 604-SS

  • Zoro # G1197201

product price:  $88.15
/ea

Key Features

Holding Capacity (Lb.)
400
Thread Size
5/16 in
Plunger Dia. (In.)
0.44
Plunger Travel (In.)
1.50
Overall Height (In.)
4.16
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
604-SS
Zoro #
G1197201
UPC #
697437560490
Country of Origin
United States

Dimensions

Thread Size
5/16 in
Plunger Dia. (In.)
0.44
Overall Height (In.)
4.16
Overall Length (In.)
4.95
Plunger Dia.
0.4400 in
Overall Length
4.1 in
Overall Height
4.1600 in
Plunger Height
0.44 in
Overall Width
1.3 in
Fastener Thread Size
5/16 in
Arm Length
1.5 in
Wire Rope Length
4.1 in

Details

Item
Straight Line Clamp
Holding Capacity (Lb.)
400
Plunger Travel (In.)
1.50
Handle
Straight
Type
Through-Hole Mount
Includes
Ergonomic Grip Handle, Mounting Nut
Plunger Travel
1-1/2 in
Capacity
400 lb
Handle Shape
Straight
Application
Assembly, Checking Fixtures, Tensioning Devices, Welding Fixtures
Features
Versatile and Compact
Exerted Force : Applied Force - Pulling
26:1
Handle Orientation
Horizontal
Accommodates Workpiece Variation
No
Locking Position
Extended, Retracted
Base Mounting Style
Through-Hole
Body Material
Stainless Steel
Exerted Force : Applied Force - Pushing
45:1
Includes Spindle
No
Holding Capacity - Maximum
400 lbf
Includes Locking Handle
No
Plunger Shape
Round
Recommended Mounting Nut Manufacturer Model Number
606904
Plunger Thread
5/16-18
Includes Mounting Nut
Yes
Plunger Travel1
1.5 in

Description

Straight Line Clamp, Base Mounting Style Through-Hole, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 400 lbf, Plunger Travel 1.5 in, Plunger Height 0.44 in, Plunger Thread 5/16-18, Includes Spindle No, Application Assembly, Checking Fixtures, Tensioning Devices, Welding Fixtures, Locking Position Extended, Retracted, Accommodates Workpiece Variation No, Arm Length 1.5 in, Body Material Stainless Steel, Exerted Force : Applied Force - Pulling 26:1
